■ Super compact structure, big inside space, modern appearance
■ Adopt TAIWAN technology, designed by TAIWAN engineer, most parts adopt GERMANY/JAPAN/TAIWAN brand.

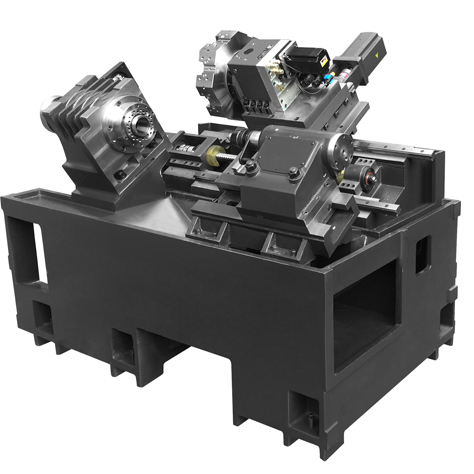

■ Adopt 30°integral slant bed design(structure similar as JAPAN TAKISAWA 106), high rigidity, good machining flexibility,easy for chip conveying.
■ Adopt modularization design, has strong extended function, easy for various especial configuration choice, such as tool setter, parts catcher, robot etc.

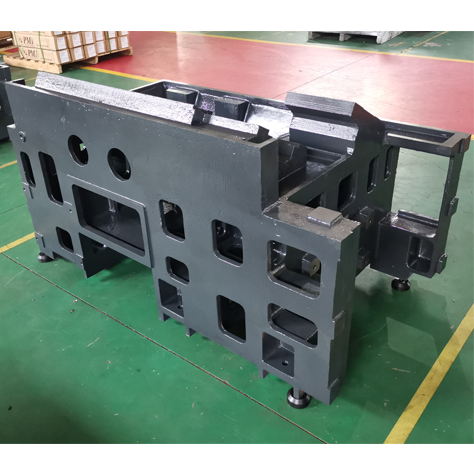

■ Adopt HT300 resin sand cast iron, after aging treatment and FEA analysis, small distortion, good torsional strength, good heat stability.
■ Base adopt multilayer strengthening rib, ensure bed’s strength and stability
■ Frame adopt oil-coolant separation design, adopt independent coolant tank
■ Adopt high precision integral spindle unit, spindle motor adopt high performance servo motor, big output torque,high speed,wide adjustment range
■ Adopt high precision pre-stretched ball screw(double nuts), coupled with feeding motor directly by linkager, no gap,high transmission rigidity, can realize μ class precise turning.
■ Adopt high precision wide linear guideway, high rigidity and long using lifespan, fast moving speed, good accuracy holding, suitable for heavy loading and precise machining
■ mount energy-storage tank,reduce pressure fluctuation during tool change

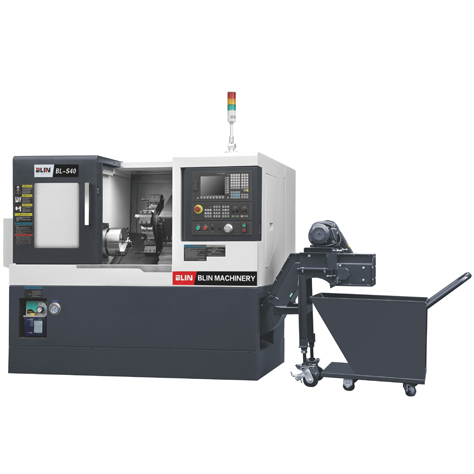

■ Can mount right-setting or back-setting chip conveyor, strong chip conveying capacity

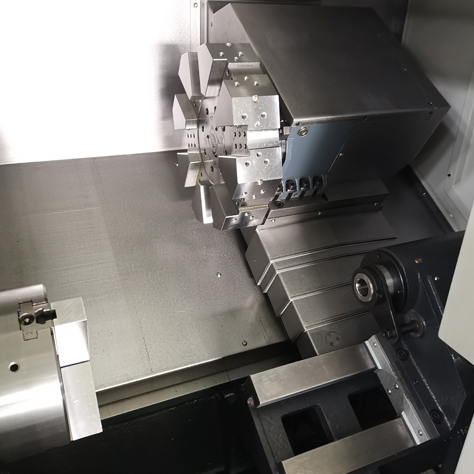

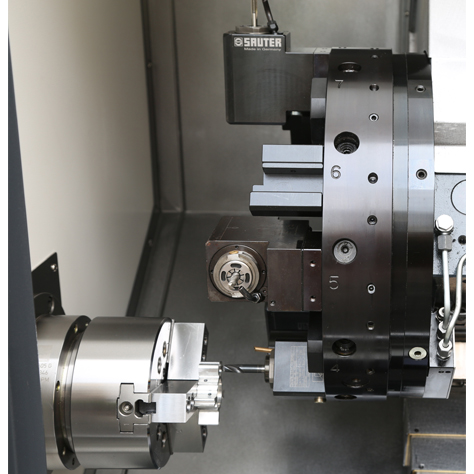

■ S40: 8T/12T Hydraulic-servo tool turret
■ S40M: 12T VDI30 Servo powered tool turret and CS axes
|
Item
|
Specification
|
Unit
|
BL-S40
|
BL-S40M
|
|
Capacity
|
Chuck size
|
/
|
8’’
|
6’’
|
|
Max. swing dia. over bed
|
mm
|
Φ500
|
|
Max. swing dia. over slide
|
mm
|
Φ270
|
|
Max. turning length
|
mm
|
320
|
290
|
280
|
|
Max. turning dia.
|
mm
|
Φ360
|
Φ340
|
|
Spindle
|
Spindle bore
|
mm
|
Φ56
|
Φ62
|
Φ56
|
|
Spindle end type
|
/
|
A2-5
|
A2-6
|
A2-5
|
|
Spindle speed
|
rpm
|
5000
|
4000
|
5000
|
|
Max. bar through dia.
|
mm
|
44
|
51
|
44
|
|
Spindle motor power
|
kw
|
7.5
|
11
|
7.5
|
|
CS axes division accuracy
|
Deg
|
/
|
0.001°
|
|
X/Z axes
|
X axes travel
|
mm
|
180+20
|
160+20
|
|
Z axes effective travel
|
mm
|
360
|
290
|
|
X/Z axes rapid moving speed
|
m/min
|
30
|
|
Tool turret
|
Tool turret type
|
/
|
HYDRAULIC-SERVO
|
SERVO POWERED
|
|
Tool qty
|
/
|
8/12*
|
12
|
|
Vicinal tool changing time
|
s
|
0.4
|
|
Farthest tool changing time
|
s
|
0.57
|
|
Toolshank size
|
mm
|
25×25(SAUTER 8T)/20×20(SAUTER 12T*), Φ40(SAUTER 8T)/Φ32(SAUTER 12T*)
|
20×20,Φ32
|
|
Live tool driven motor
|
kw
|
/
|
3.3(SIEMENS
828D)
|
|
Live tool driven motor torque
|
N.m
|
/
|
16(SIEMENS
828D)
|
|
Live tool max. speed
|
rpm
|
/
|
4500
|
|
Live tool type
|
/
|
/
|
VDI30
|
|
Tailstock
|
Tailstock quill taper
|
/
|
MT4#
|
|
Tailstock quill dia./travel
|
mm
|
Φ70/90
|
|
Accuracy
|
Ex-circle finish turning accuracy
|
/
|
IT6
|
|
Finish turning roughness
|
mm
|
Ra0.4~1.6
|
|
Finish turning roundness
|
mm
|
≤0.003
|
|
Positioning accuracy(X/Z)
|
mm
|
0.005/0.008
|
|
Repeat positioning accuracy(X/Z)
|
mm
|
0.002/0.004
|
|
Others
|
Coolant pump power
|
w
|
580
|
|
Coolant flow
|
m³/h
|
2.5
|
|
Overall size
|
mm
|
1900×1500×1600/2700×1500×1600(exclude/include chip conveyor)
|
|
N.W.
|
kg
|
2700
|
2800
|
2900
|
|
Item
|
Brand
|
|
CNC controller
|
GERMANY-SIEMENS/JAPAN-FANUC
|
|
Servo driver&motor
|
GERMANY-SIEMENS/JAPAN-FANUC
|
|
Spindle unit
|
TAIWAN-VOLIS/KENTURN
|
|
Hydraulic-servo tool turret(S40)
|
GERMANY-SAUTER/INDIA PRAGATI
|
|
Powered tool turret(S40M)
|
GERMANY-SAUTER
|
|
Ball screw
|
TAIWAN-PMI/HIWIN
|
|
Ball screw bearing
|
JAPAN-NSK/NTN
|
|
Linear guideway
|
TAIWAN PMI/HIWIN
|
|
Lubrication system
|
TAIWAN-ISHAN
|
|

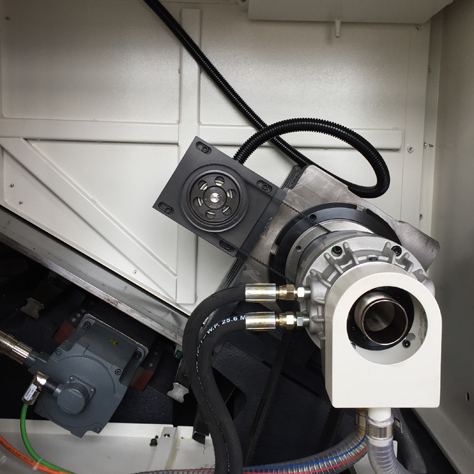

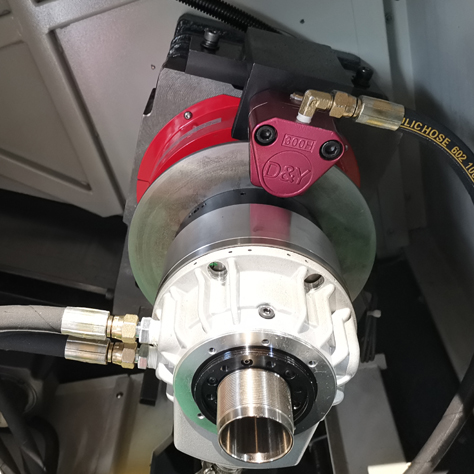

Rotary oil cylinder&chuck
|
TAIWAN-AUTOGRIP
|
|
Hydraulic parts
|
TAIWAN/JAPAN
|
|
MPG
|
USA-HEDSS
|
|
Tri-color indication lamp
|
KOREA-QLIGHT
|
|

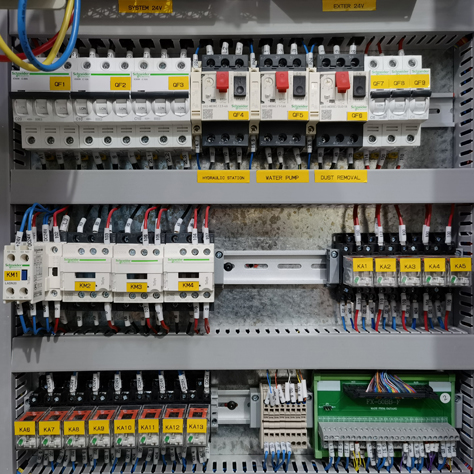

Breaker&AC contactor
|
FRANCE-SCHNEIDER
|
|
Relay
|
JAPAN-OMRON
|
|
DC switch power supply
|
TAIWAN-MEANWELL
|
|
Terminal block
|
GERMANY-WEIDMULLER
|
|
Synchronous belt
|
USA-GATES
|
|
Synchronous belt wheel
|
TAIWAN-PTP
|
|
Nuts
|
TAIWAN-YINSH
|
|
Shaft coulping
|
GERMANY-KTR/R+W
|
|
Scrapping plate&Extensible
cover
|
TAIWAN-WANHE
|
|
Chip conveyor&chip bucket
|
TAIWAN-WANHE
|
|
Coolant pipe
|
TAIWAN-WEIDING
|
Standard configuration:
●SIEMENS 808D ADVANCED CNC controller

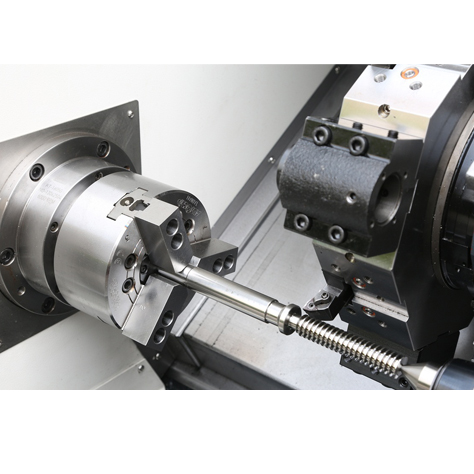

●Hydraulic chuck
●S40: Hydraulic-servo tool turret
S40M: 12T VDI30 servo powered tool turret
●Hydraulic tailstock
Optional configuration:
●SIEMENS 828D/FANUC 0i TF CNC controller
●Automatic chip conveyor
●Tool setting probe
