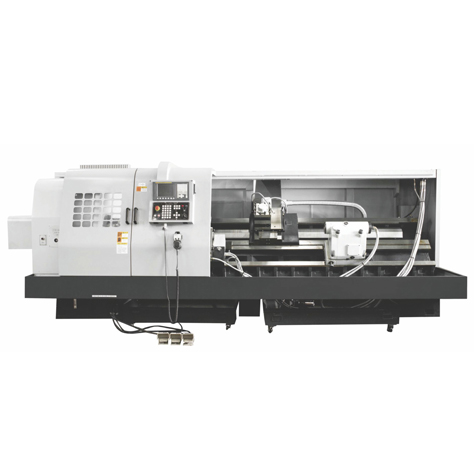

Item
|
Specification
|
Unit
|
BL-CBK50
|
BL-CBK63
|
|
Capacity
|
Bed slant angle
|
°
|
45°
|
45°
|
|
Max. swing dia. over bed
|
mm
|
Φ500
|
Φ630
|
|
Max. swing dia. over saddle
|
mm
|
Φ350
|
Φ445
|
|
Max. turning dia.
|
mm
|
Φ420
|
Φ500(Vertical 4T tool turret);
Φ400(Horizontal 8T tool turret)
|
|
Max. turning length
|
mm
|
1050(Vertical 4T tool turret);
980(Horizontal 6,8T tool turret)
|
1000/2000/3000(Vertical 4T tool turret);
800/1800/2800(Horizontal
8T tool turret)
|
|
Max. workpiece weight
|
kg
|
700(10’’ manual chuck)
|
1200(12’’ manual chuck)
|
|

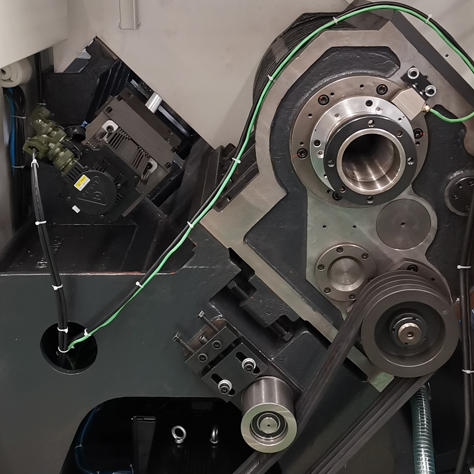

Spindle
|
Spindle bore
|
mm
|
Φ82
|
Φ84
|
|
Spindle type
|
/
|
A2-8
|
A1-11(manual chuck);A2-8(hydraulic chuck)
|
|
Spindle speed
|
rpm
|
H:162~1620 M:66~660 L:21~210
Manual 3 class gears, stepless in every class
|
L:20~210 M:50~525 H:155~1600
Manual 3 class gears, stepless in every class
|
|
Spindle motor power
|
kw
|
7.5
|
11
|
|
Chuck size
|
/
|
10’’
|
12’’
|
|
X/Z axes
|
X axes travel
|
mm
|
255
|
350(Vertical 4T tool turret);
270(Horizontal 8T tool turret)
|
|
Z axes travel
|
mm
|
1000
|
1000/2000/3000(Vertical 4T tool turret);
800/1800/2800(Horizontal 8T tool turret)
|
|
X axes ball screw O.D.
|
mm
|
Φ32
|
Φ32
|
|
Z axes ball screw O.D.
|
mm
|
Φ40
|
Φ50(1000mm)/50(2000mm)/63(3000mm)
|
|
X axes ball screw pitch
|
mm
|
5
|
5
|
|
Z axes ball screw pitch
|
mm
|
6
|
6(1000mm)/6(2000mm)/8(3000mm)
|
|
X/Z axes rapid moving speed
|
m/min
|
6/8
|
8/8
|
|

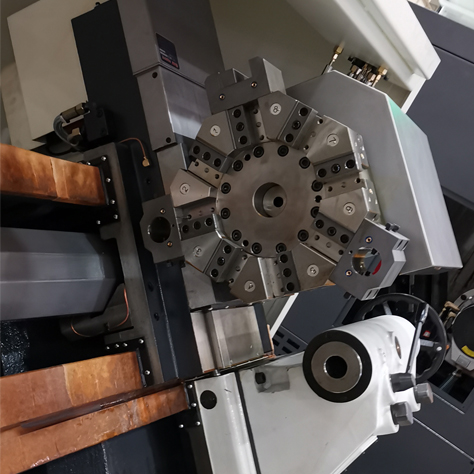

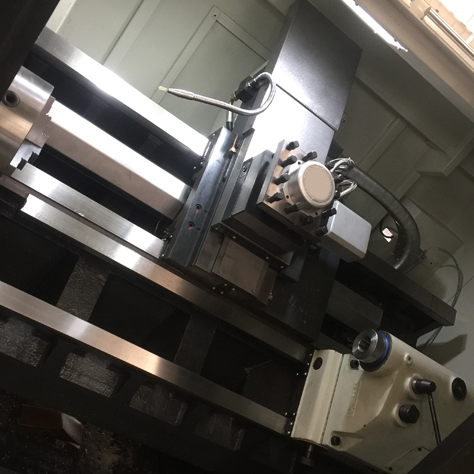

Tool turret
|
Tool turret type
|
/
|
Vertical 4T/Horizontal 6,8T(opt.)
|
Vertical 4T/Horizontal 8T(opt.)
|
|
Toolshank size
|
mm
|
25×25
|
32×32
|
|

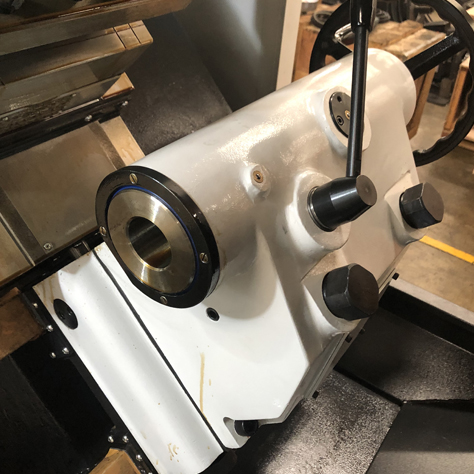

Tailstock
|
Tailstock quill taper
|
/
|
MT5#
|
MT5#
|
|
Tailstock quill dia./travel
|
mm
|
Φ90/100
|
Φ100/150
|
|

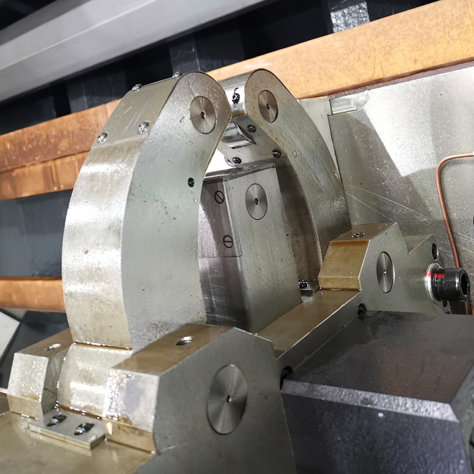

Others
|
X/Z axes positioning accuracy
|
mm
|
0.026/0.036
|
X axes≤0.026
Z axes≤0.036(1000mm);0.040(2000mm);
0.048(3000mm)
|
|
X/Z axes repeated positioning accuracy
|
mm
|
0.01/0.013
|
X axes≤0.007mm
Z axes≤0.009(1000mm);0.014(2000mm);
0.020(3000mm)
|
|
Turning workpiece roundness
|
mm
|
0.004
|
0.004
|
|
Overall size
|
mm
|
3120×1900×1910
|
2720/3980/5050×1800×1890
|
|
N.W.
|
kg
|
3800
|
5000/5500/7500
|
