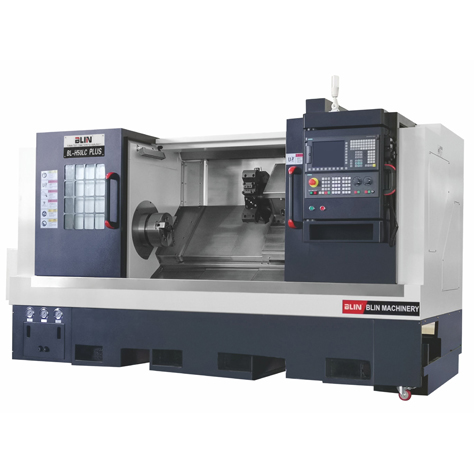

BL-H50L/LC Slant Bed CNC Lathe

简体中文

HOME > MACHINES>

BL-H50L/LC PLUS

■ H LINEAR-GUIDEWAY LONG-AXES Series
■ TAIWAN technology
■ ROLLER type linear guideway
■ Heavy-duty type
■ Suitable for long axes turning

CATALOGUE INQUIRY

Features
Specification
Main parts list
CONFIGURATION

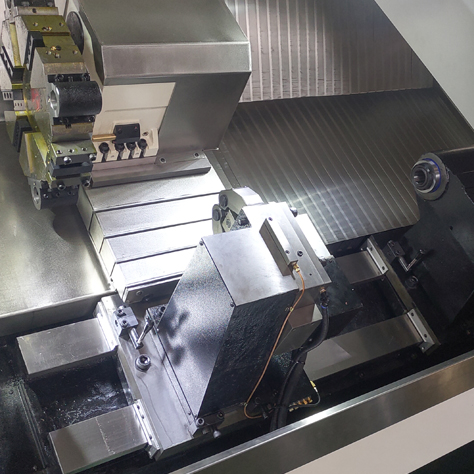

■ Adopt ROLLER type linear guideway
■ Adopt TAIWAN technology, most parts adopt GERMANY/JAPAN/TAIWAN brand
■ Adopt 45°integral slant bed design
■ Adopt china top class HT300 cast iron, after aging treatment, small distortion, good torsional strength, good heat stability
■Adopt high precision spindle unit, spindle motor adopt high performance servo motor, big output torque,high speed
■Adopt high precision pre-stretched ball screw(double nuts), coupled with feeding motor directly by linkager,
no gap,high transmission rigidity

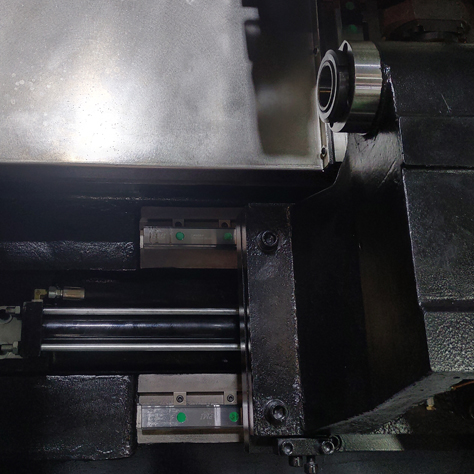

■ Adopt especial structure programmable tailstock, tailstock quill not move, whole tailstock body driven by hydraulic cylinder
on linear guideway(* If mount hydraulic steady rest, the guideway of tailstock to be BOX guideway)

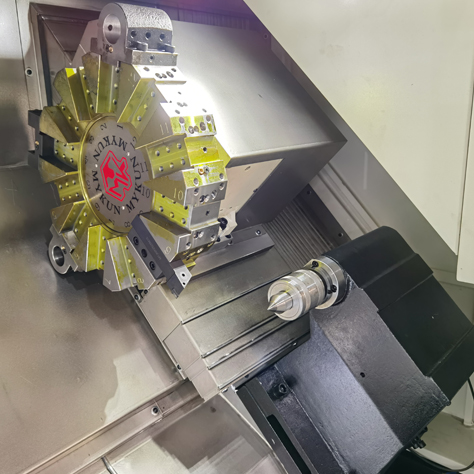

■ H50L PLUS mount 12T Hydraulic-servo tool turret

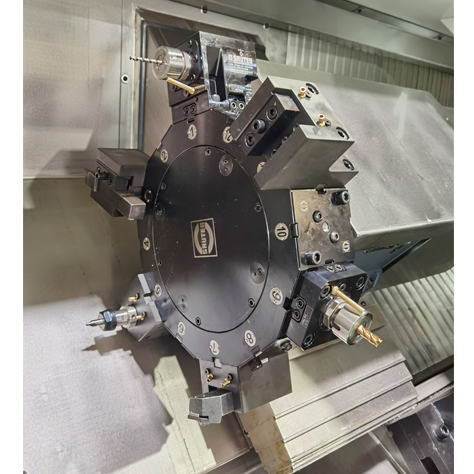

■ H50LC PLUS mount C axes and 12T GERMAN SAUTER Powered tool turret

Item	Specification	Unit	BL-H50L PLUS	BL-H50LC PLUS
Capacity	Max. swing dia. over bed	mm	Φ520
	Max. swing dia. over slide	mm	Φ300
	Max. turning dia.	mm	Φ400	Φ350
	Max. turning length	mm	1000/1500/2000/3000
Spindle	Spindle bore	mm	Φ79(Φ92*)
	Spindle type	/	A2-6(A2-8*)
	Spindle speed	rpm	4000(2500*)
	Chuck size	/	8’’(10’’,12’’)
	Max. bar through dia.	mm	Φ51(Φ74,Φ79)
	Spindle motor power	kw	11(15*)
	Spindle dividing accuracy	°	/	0.001°
X/Z axes	X axes travel	mm	220	210
	Z axes travel	mm	1000/1500/2000/3000
	X axes ball screw dia./pitch	mm	Φ32/10
	Z axes ball screw dia./pitch	mm	Φ40/12
	X/Z axes linear guideway width	mm	35/45(ROLL type)
	X/Z axes rapid moving speed	m/min	24/20
Tool turret	Tool post type	/	12 station hydraulic-servo tool turret	12 station servo powered tool turret BMT55
	Live tool speed	rpm	/	4500
	Toolshank size	mm	25×25, Φ40
Tailstock	Tailstock quill travel	mm	/	/
	Taisltock quill dia.	mm	/	/
	Tailstock quill taper	/	MT5#
	Tailstock body travel	mm	900/1400/1900/2900
Others	X/Z axes positioning accuracy	mm	±0.005
	X/Z axes repeated positioning accuracy	mm	±0.003
	Overall size	mm	3300/3800/4300/5300×1700×1800
	N.W.	kg	6000(for 1000mm)	6500(for 1000mm)

Item	BL-H50L PLUS	BL-H50LC PLUS
CNC controller	GERMANY-SIEMENS	GERMANY-SIEMENS
X,Z axes servo motor&driver	GERMANY-SIEMENS	GERMANY-SIEMENS
Spindle servo motor&driver	CHINA Top(opt.:SIEMENS)	GERMANY-SIEMENS
Tool turret index motor&driver	TAIWAN-DELTA	GERMANY-SIEMENS
Live tool motor&driver	/	GERMANY-SIEMENS
Spindle	TAIWAN-KENTURN
Spindle encoder	CHINA brand	GERMANY-HEIDENHAIN
Bearing	JAPAN NSK/GERMANY FAG
Ball screw	TAIWAN HIWIN/PMI
Linear gudieway	TAIWAN HIWIN/PMI
Tool turret	INDIA-PARAGATI/TAIWAN MYKUN/GERMANY-SAUTER	GERMANY-SAUTER
Chuck&cylinder	TAIWAN-AUTOGRIP
Hydraulic parts	TAIWAN/JAPAN
Lubrication pump	JAPAN-HERG
Nuts	TAIWAN-YINSH
Main electric parts	FRANCE-SCHNEIDER

Standard configuration:
●SIEMENS 808D ADVANCED CNC controller

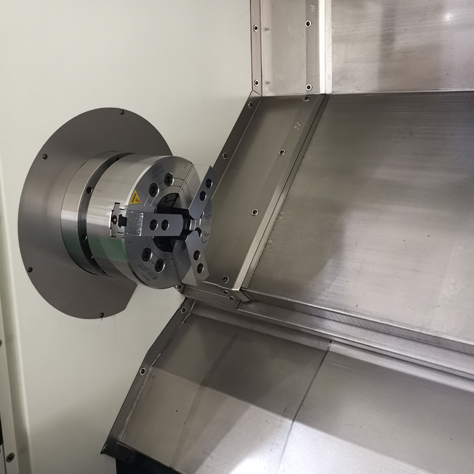

●Hydraulic chuck
●Hydraulic-servo tool turret
●Hydraulic tailstock

Optional configuration:

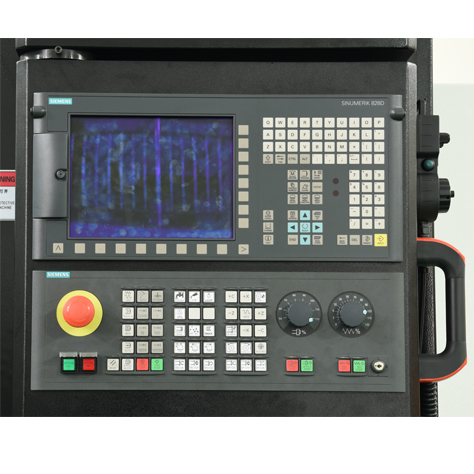

●SYNTEC/SIEMENS 828D/FANUC CNC controller
●C axes& powered tool turret
●Y axes
●Automatic chip conveyor
●Tool setting probe
