■ Adopt TAIWAN technology, most parts adopt GERMAN/JAPAN/TAIWAN brand

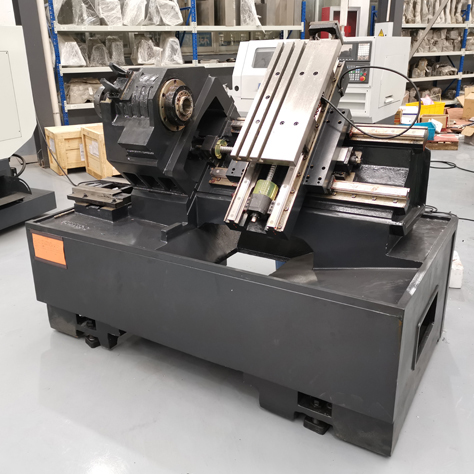

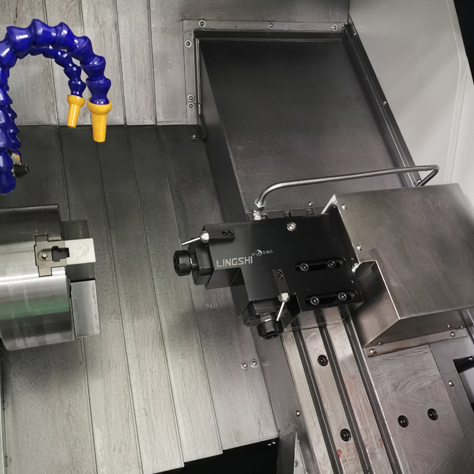

■ Adopt 45°mono-block slant bed design
■ Adopt wide linear guideway,high rigidity
■ Adopt modularization design, easy for various especial configuration choice, such as tool setter etc
■ Adopt MEEHANITE class cast iron, after aging treatment, small distortion, good torsional strength, good heat stability
■Base adopt multilayer strengthening rib, ensure bed’s strength and stability
■Adopt high precision spindle unit(H5 can choose 6000rpm synchronous servo electro-spindle), spindle motor adopt
high performance servo motor, big output torque,high speed,wide adjustment range
■Adopt high precision C3 class pre-stretched ball screw,coupled with feeding motor directly by linkager, no gap
|
Item
|
Specification
|
Unit
|
BL-H5
|

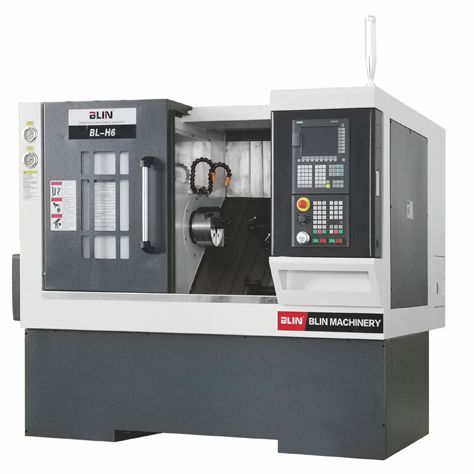

BL-H6
|
|
Capacity
|
Chuck size
|
/
|
collet/5’’ chuck*
|
6’’
chuck/8’’ chuck*
|
8’’
chuck/10’’ chuck*
|
|
Max. swing dia. over bed
|
mm
|
Φ320
|
Φ400
|
|
Max. swing dia. over slide
|
mm
|
Φ126
|
Φ126
|
|
Max. turning length
|
mm
|
320
|
340(Gang tool);300(8T tool turret)
|
|
Max. turning dia.
|
mm
|
Φ300
|
Φ300
|
|
Standard turning dia.
|
mm
|
Φ120
|
Φ150
|
|
Spindle
|
Spindle bore
|
mm
|
Φ36
|
Φ46
|
Φ56
|
Φ66
|
|
Spindle end type
|
/
|
A2-4
|
A2-5
|
A2-6
|
|
Max. bar through dia.
|
mm
|
Φ24
|
Φ35
|
Φ45
|
Φ51
|
|
Spindle speed
|
rpm
|
6000
|
5000
|
5000
|
4000
|
|
Spindle motor power
|
kw
|
5.5
|
7.5
|
11
|
|
X/Z axes
|
X axes travel
|
mm
|
420
|
460
|
|
Z axes travel
|
mm
|
320
|
340
|
|
X/Z axes linear guideway width
|
mm
|
30/30
|
35/35
|
|
X axes ball screw O.D/pitch
|
mm
|
Φ25/10
|
Φ32/10
|
|
Z axes ball screw O.D/pitch
|
mm
|
Φ32/10
|
Φ32/10
|
|
X/Z axes rapid moving speed
|
m/min
|
30/30
|
|
Tool post
|
Tool turret type
|
/
|

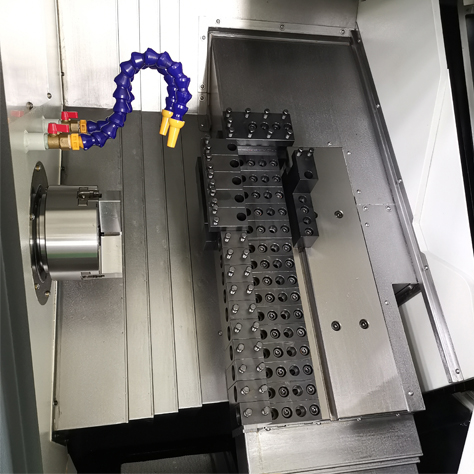

Gang tool
|
Gang
tool/8T hydraulic tool turret*
|
|
Toolshank size
|
mm
|
20×20, Φ25
|
20×20, Φ25
|
25×25, Φ32
|
|
Tailstock
|
Tailstock quill taper
|
/
|
None
|
|
Accuracy
|
Positioning accuracy(X,Z)
|
mm
|
0.008/1000
|
|
Repeat positioning accuracy(X,Z)
|
mm
|
≤0.005
|
|
Others
|
Overall size
|
mm
|
1750×1590×1800
|
2140×1780×1780
|
|
N.W.
|
kg
|
1900
|
2700
|
2800
|
|
Item
|
Brand
|
|
Spindle unit
|
CHIAN top brand
synchronous servo electro-spindle/TAIWAN-ROYAL
|
|
Tool turret
|
TAIWAN-GSA/YULIN/SWIFT
|
|
Ball screw
|
H5: TAIWAN-HIWIN
C3 class
H6: JAPAN-THK
|
|
Ball screw bearing
|
GERMANY-FAG
|
|
Linear guideway
|
H5:TAIWAN-HIWIN P class
H6: JAPAN-THK
|
|
Lubrication system
|
TAIWAN-ISHAN
|
|
Rotary oil cylinder&chuck
|
TAIWAN-AUTOGRIP
|
|
Hydraulic parts
|
TAIWAN/JAPAN
|
|
Heat exchanger
|
Joint-venture
|
|
Main electricity parts
|
FRANCE-SCHNEIDER
|
Standard configuration:
●SIEMENS 808D ADVANCED CNC controller
●Hydraulic collet/chuck

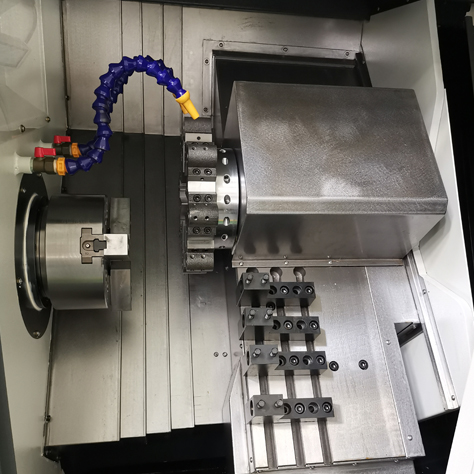

●Gang tool/8T hydraulic tool turret
Optional configuration:
●SYNTEC/FANUC CNC controller
●Live tool
●Chip conveyor
●Bar feeder
