■ LINEAR guideway
■ Economical
■ 5’’/6’’ collet/chuck

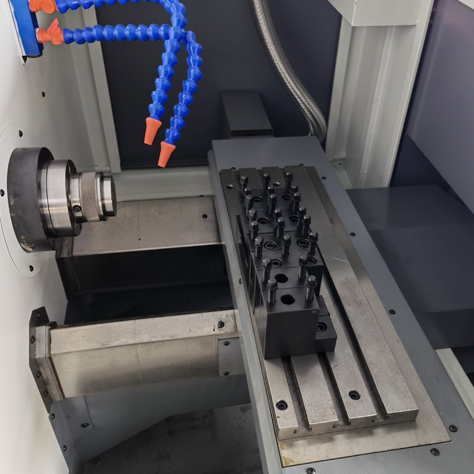

■ Gang tool
■ Without tailtock
■ TAIWAN linear guideway and ball screw
■ Super high performance-price ratio
Item
Specification
Unit
BL-Z0632
Capacity
Chuck size
/
5’’/6’’
Max. swing dia. over bed
mm
Φ400
Max. swing dia. over slide
Φ120
Max. turning length
200(chuck)
Spindle
Spindle speed
rpm
3000
Spindle type
A2-5
Spindle bore
Φ48
Spindle motor
kw
3
Clamping device

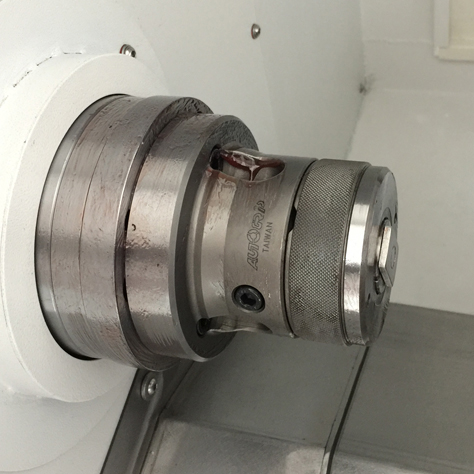

Hydraulic collet/Hydraulic chuck
X/Z axes
X/Z axes travel
320/330
X/Z axes servo motor
N.m
4/4
X/Z axes rapid move speed
m/min.
20/20
X/Z ball screw O.D.
Φ25/Φ32
X/Z linear guideway width
25/30
X/Z axes positioning accuracy
0.03/0.03
X/Z repeatability accuracy
0.005/0.01
Tool post
Gang tool/4T tool turret
Toolshank size
20×20
Tailstock
N/A
Others
Overall size
1700×1400×1700
N.W.
kg
1200
Brand
Bearings
CHINA top
Ball screw
TAIWAN
Linear guideway
Chuck& cylinder
TAIWAN-AUTOGRIP

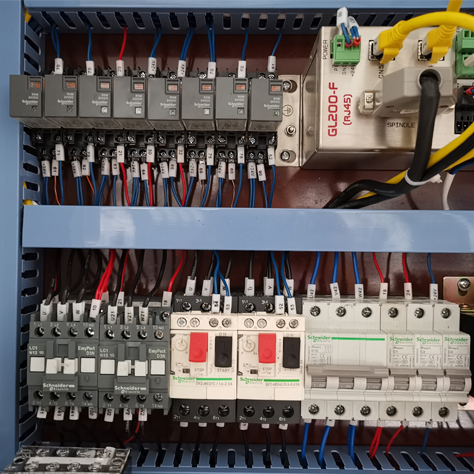

Main electric parts
FRANCE-SCHNEIDER
Standard configuration:

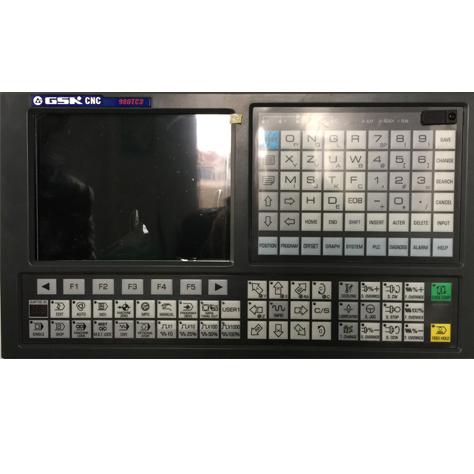

●GSK980TC3 CNC Controller ●Hydraulic collet ●Gang tool Optional configuration: ●SIEMENS 808D ADVANCED CNC controller ●Hydraulic chuck ●4 station tool turret
