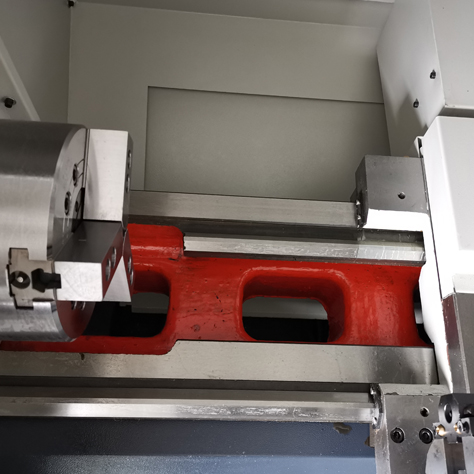

■Guideway width 312mm, suitable for light process

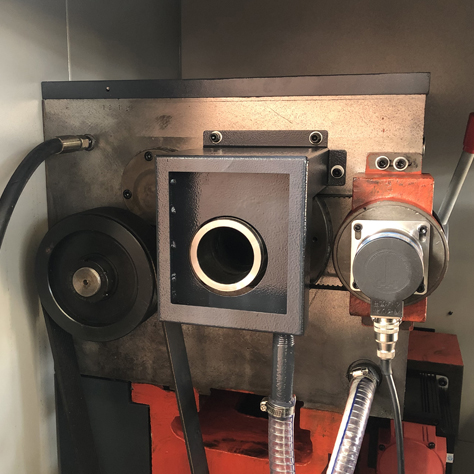

■Can choose Independent spindle or 2 class gear spindle
■Bed casted by China top quality compound resin sand cast iron
■Guideway hardened by ultrasonic frequency, good precision keeping
■Aging treatment,has good vibration absorption and rigidity
■Guideway stick PTFE,remove creeping,obviously increase precision, wearability and anti-impact force
■Spindle use high precision bearing, Germany KLUBER lipid
■High precision ball screw, connected with motor directly
Standard configuration:
●GSK controller
●Manual chuck
●4 station tool post
●Manual tailstock
Optional configuration:
●SIEMENS 808D ADVANCED/FANUC 0I TF controller
●Hydraulic chuck

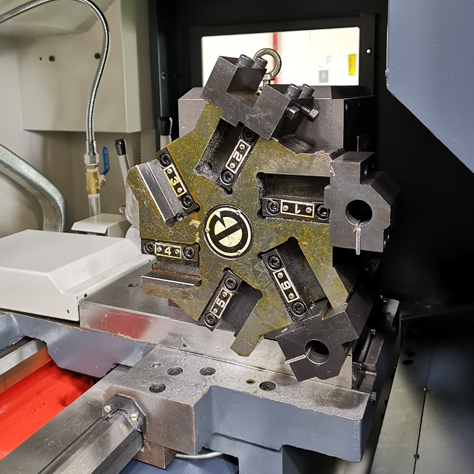

●6/8 station tool turret
●Hydraulic tailstock
