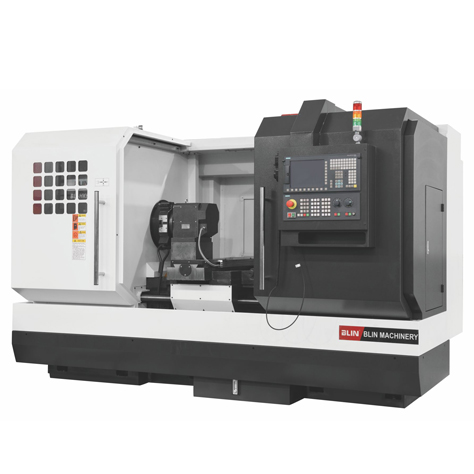

BL-HK63B/80B
HK PRECISE HEAVY-DUTY Series

 560mm guideway width

■ Spindle bore:105mm

CHINA top quality


  • Features
  • Specification
  • MAIN PARTS LIST
  • CONFIGURATION

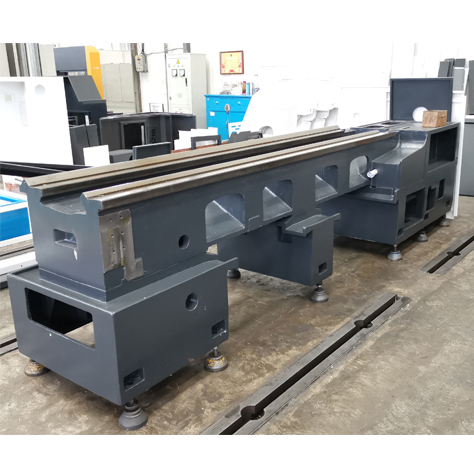

■ Adopt China best high strength compound resin sand cast iron
■ Aging treatment,has good vibration absorption and rigidity
■ Guideway hardened by ultrasonic frequency and precise ground, good precision keeping
■ Guideway stick PTFE,remove creeping,obviously increase precision, wearability and anti-impact force

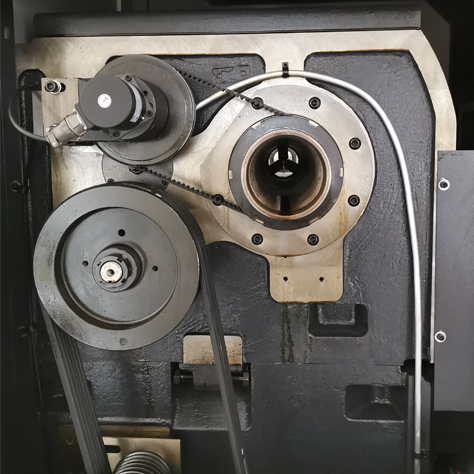

■ Adopt 3 class Integral gear box type spindle,big bore,high rigidity,suitable for heavy turning


Item

Specification

Unit

BL-HK63B

BL-HK80B

Capacity

Guideway width

mm

560

Max. swing dia. over bed

mm

Φ630

Φ800

Max. swing dia. over slide

mm

Φ360

Φ500

Max. turning dia.

(vertical 4T/horizontal 6T tool turret)

mm

Φ630/500

Φ740/610

Center distance

mm

1000/1500/2000/3000(vertical 4T tool turret)

900/1400/1900/2900(horizontal 6T tool turret)

Max. Workpiece weight

kg

1200(standard);1500(max.)

Spindle

Spindle bore

mm

Φ105

Spindle head type

/

A1-11

Spindle speed

rpm

3 class gears

H:112~1120  M:37~373 L:20~210

Spindle motor

kw

11(servo)

Spindle max. torque

Nm

1265

Chuck size

/

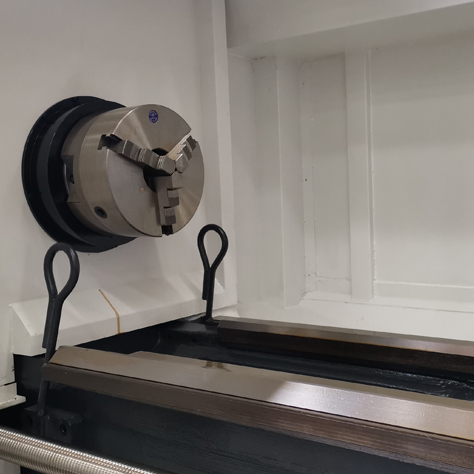

Φ315(manual 3-jaw chuck)

X/Z axes

X axes travel

mm

370

390

Z axes travel

mm

760/1310/1810/2810(vertical 4T tool turret)

660/1210/1710/2710(horizontal 6T tool turret)

X/Z axes motor

kw

1.4/2.5(FANUC)

X/Z axes rapid speed

m/min

6/7

X axes ball screw O.D./pitch

mm

Φ40/5

Z axes ball screw O.D./pitch

mm

Φ50/8(1000,1500mm);Φ63/8(2000,3000mm)

Tool post

Tool turret type

/

Vertical 4/Horizontal 6 station

Tool shank size

mm

32×32,Φ32

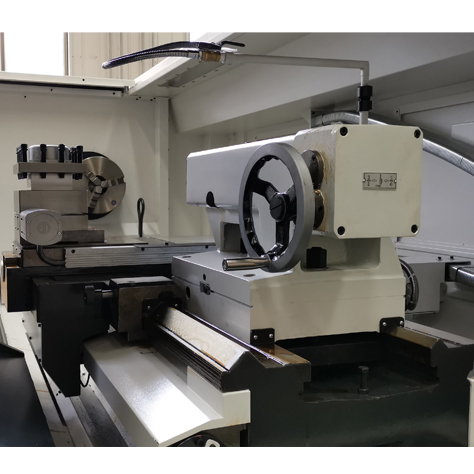

Tailstock

Tailstock quill dia.

mm

Φ100

Tailstock quill travel

mm

250(150 for hydraulic tailstock&6 station tool turret)

Tailstock quill taper

/

MT5#

Accuracy

X/Z axes positioning accuracy

mm

0.026/0.032(1000),0.040(1500,2000,3000)

X/Z axes repeatability positioning accuracy

mm

0.007/0.009(1000),0.014(1500,2000,3000)

Turning workpiece roundness

mm

0.004

Others

Total power

KVA

30

N.W.

kg

4600/5100/5600/6100

4800/5300/5800/6400

Overall size(L×W×H)

mm

3550/4000/4500/5600×2000×1850

3700/4100/5000/5600×2000×2000



Item

Brand

Spindle bearing

CHINA top-CSC/ZWZ

Ball screw bearing

CHINA top-CSC

Ball screw

CHINA top

Lubrication pump

JAPAN-LUBE

Standard configuration:
●FANUC 0I TF controller
●Manual chuck
●4 station tool post
●Manual tailstock

Optional configuration:
●SIEMENS 808D/GSK980TDi controller
●Hydraulic chuck

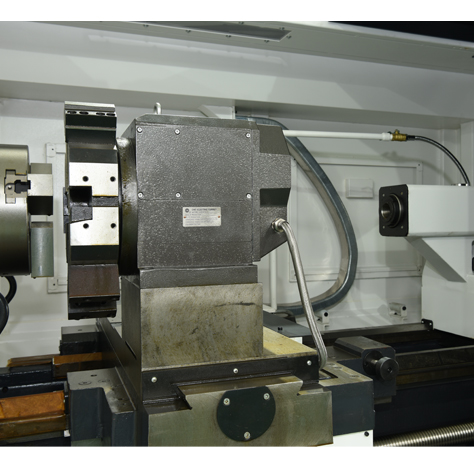

●6 station tool turret
●Hydraulic tailstock

●Steady rest
● Follow rest
