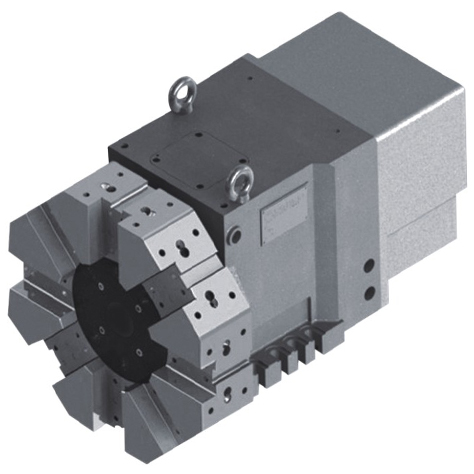

SLT series 8,12 station Servo tool turret

简体中文

HOME > MACHINES>

It fit for economic and top grade CNC lathe.

CATALOGUE INQUIRY

Specification
Features

Item		Model
Item		SLT63	SLT80	SLT100	SLT125	SLT160
Center Height	mm	63	80	100	125	260
Cutter Qty		8	8;12	8;12	8;12	8;12
Time of rotate to 45º and tighten	Sec.	0.23	0.45	0.35	0.54	0.72
Time of rotate to 180º and tighten	Sec.	0.55	0.79	0.76	0.95	1.47
Clamping force	kg	1200	2800	3200	5700	8100
油压压力 Hydraulic Working Pressure	Kgf/cm2	28~32	28~32	33~37	33~37	33~37
Flow rate	L/min	18	20	25	30	30
Idexing Accuracy		±4‘’	±4‘’	±4‘’	±4‘’	±4‘’
Accuracy repeatability		±1.6‘’	±1.6‘’	±1.6‘’	±1.6‘’	±1.6‘’
Net weight (without cutter-head)	kg	38	85	102	160	220

1.The servo motor is adopted for tool disc translocation,which has precise indexing accuracy,high speed on tool changing,and supports bidirectional translocation and the nearest tool selection.

2.High-precision triple hirth coupling and hydraulic clamping devices are used to obtain high indexing accuracy,reliable clamping and suitable conditions for heavy cutting.

3.Precise deceleration institution is designed to reduce noise and withstand high-torque loads.

4.Turret with 4,6,8,10,12or more stations can be produced according to the special needs.

5.Tool disc and tool holders can be customized according to the special requirements.

6.It fit for economic and top grade CNC lathe.
