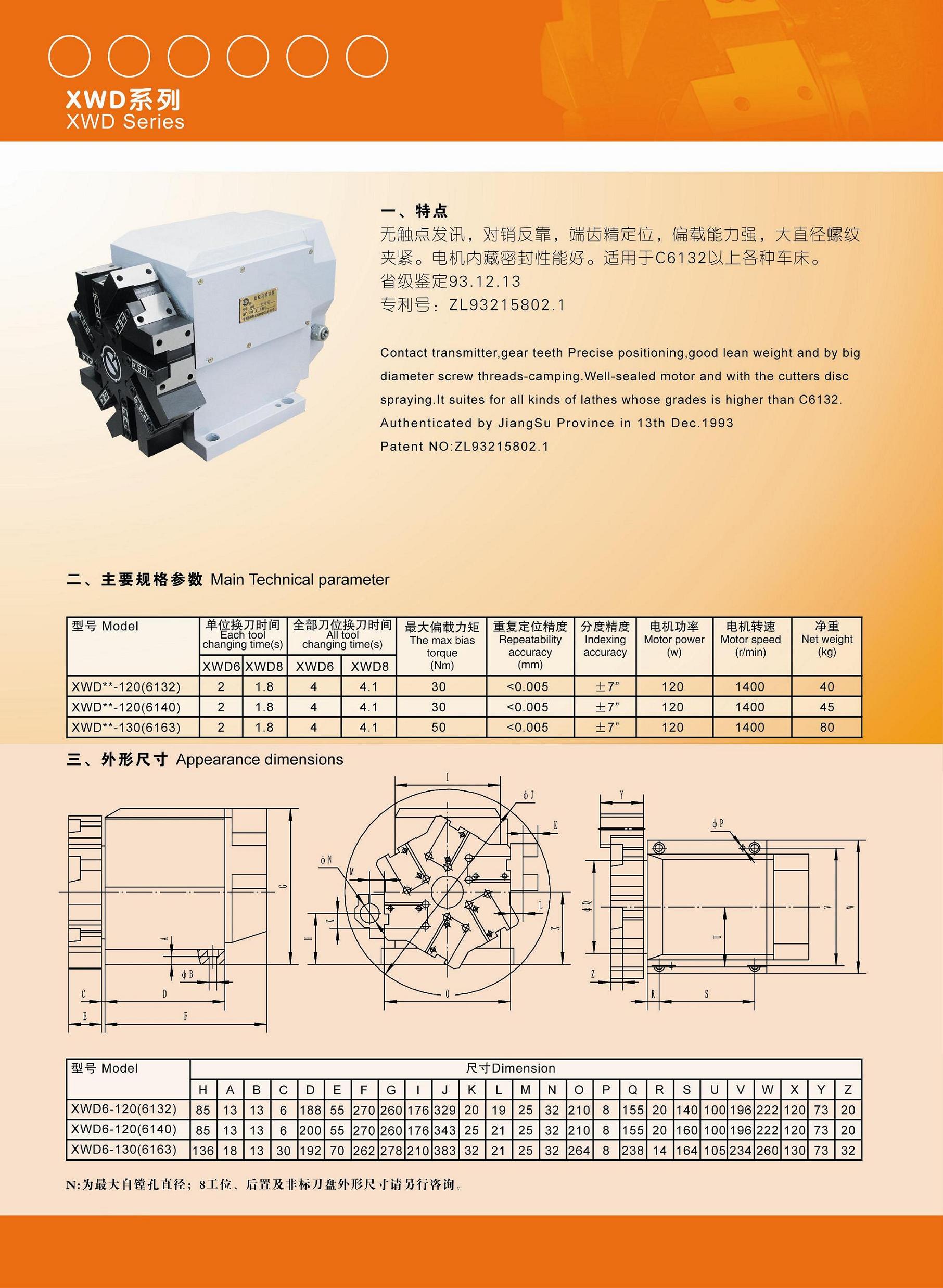

XWD Series Electrical Turret

简体中文

It suiters for all kinds of all lathes whose grades is higher than C6132.

Specification
Features

MODEL	Indexing T(S)		Max unbalancing Torque (Nm)	Repeatability Accuracy (mm)	Dividing Accuracy (mm)	Motor (w)	Motor (rps)	W (KG)
MODEL	XWD6	XWD8	Max unbalancing Torque (Nm)	Repeatability Accuracy (mm)	Dividing Accuracy (mm)	Motor (w)	Motor (rps)	W (KG)
XWD6/8-120(6132)	1.8-2.1	1.6-1.8	30	＜0.005	＜0.03	120	1400	40
XWD6/8-120(6140)	1.8-2.1	1.6-1.8	30	＜0.005	＜0.03	120	1400	45
XWD6/8-130(6163)	1.8-2.1	1.6-1.8	30	＜0.005	＜0.03	120	1400	80
XWD6/8-210(6172)	1.8-2.1	1.6-1.8	30	＜0.005	＜0.03	120	1400	130

Contact transmitter,gear teeth Precise positioning,good lean weight and by big diameter screw threads-camping.Well-sealed motor and with the cutters disc spraying.
