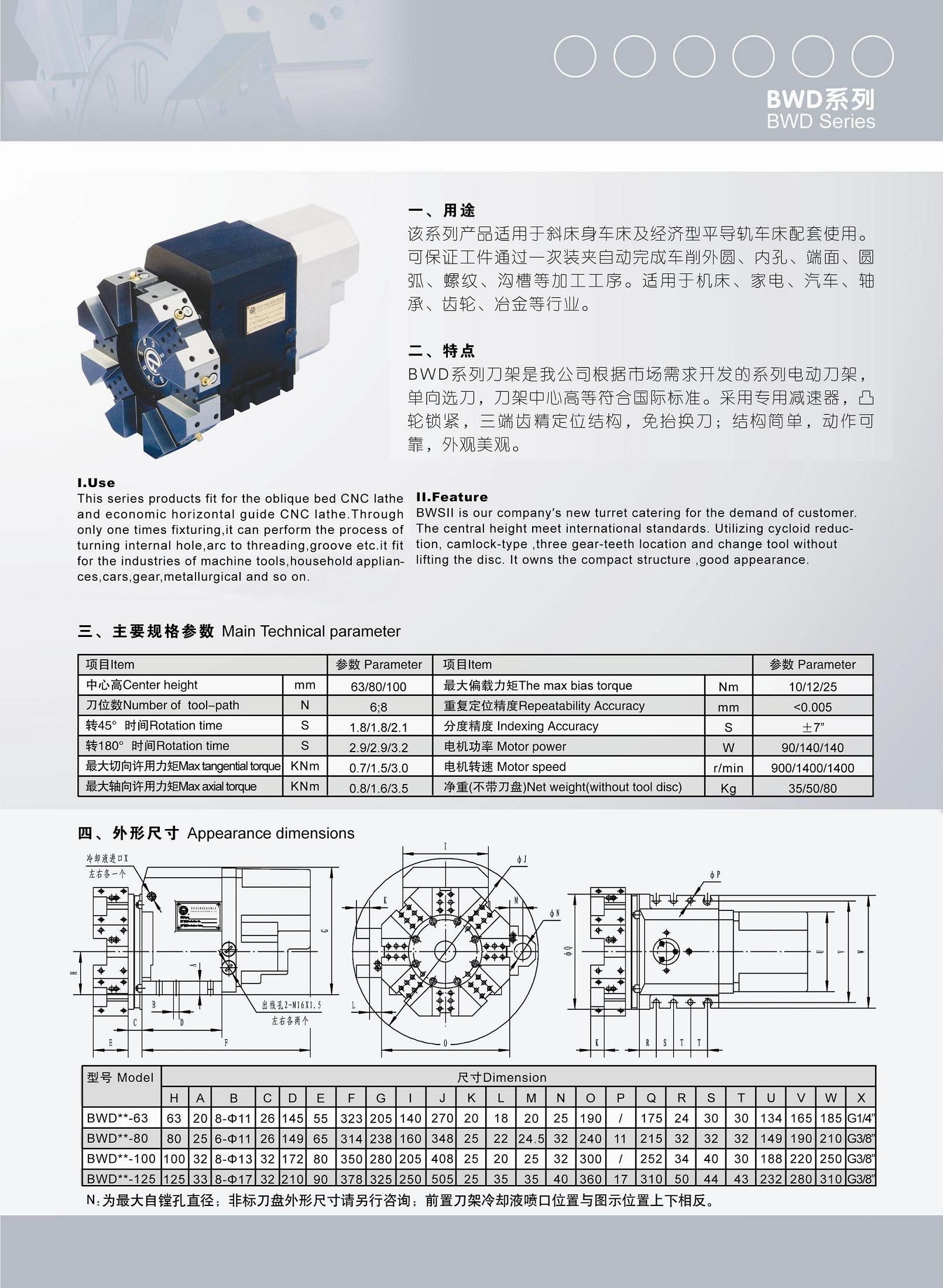

BWSII is our company’s new turret catering for the demand of customer.The central height meet international standards.Utilizing cycloid reduction.camlock-type,there gear-teeth location and change tool without lifting the disc.It owns the compact structure,good appearance.
ltem
Parameter
Center height
mm
63/80/1 00
The max bias torque
Nm
10/12/25
Numberof tool-path
N
6;8
Repeatability Accuraoy
<0.005
Rotationtime
s
1 8/1 8/2.1
lndexing Accuracy
±7
Rotation tlme
2.9/2.9/3.2
Motor power
w
90/140/140
Max tangential torque
KNm
0.7/1 5/3.0
Motor speed
r/min
900/1400/1400
Max axial torque
0.8/1 6/3.5
Net weight(without tool disc)
Kg
35/50/80
