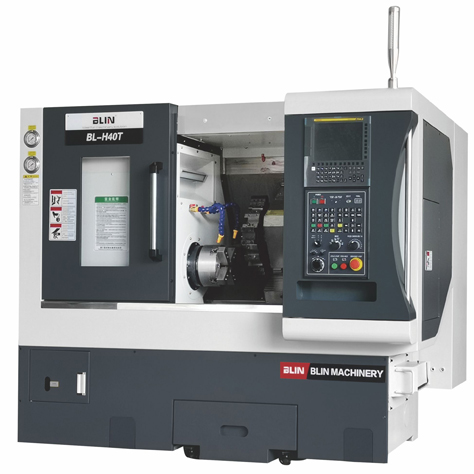

■ Adopt TAIWAN technology, designed by TAIWAN engineer, most parts adopt GERMANY/TAIWAN brand

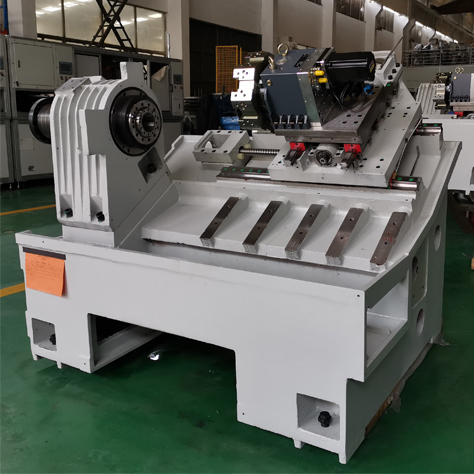

■ Adopt 30°integral slant bed design

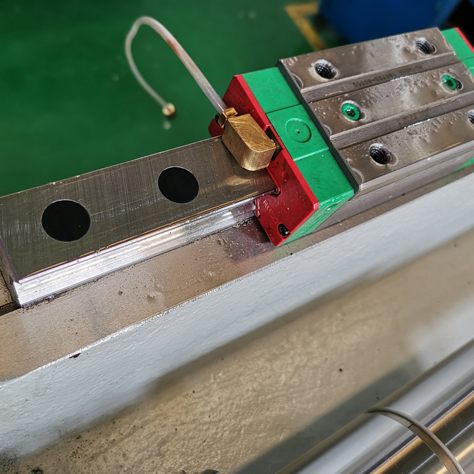

■ Z axes adopt ROLLER type linear guideway,super high rigidity
■ Adopt modularization design, easy for various especial configuration choice, such as tool setter etc
■ Adopt MEEHANITE class cast iron, after aging treatment, small distortion, good torsional strength, good heat stability
■ Base adopt multilayer strengthening rib, ensure bed’s strength and stability
■ Adopt high precision integral spindle unit, spindle motor adopt high performance servo motor, big output torque,high speed,wide adjustment range
■ Adopt high precision C3 class pre-stretched ball screw(double nuts), coupled with feeding motor directly by linkager, no gap,high transmission rigidity

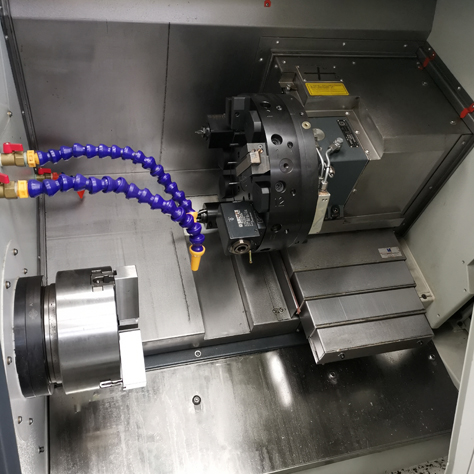

■ H40T mount 8T hydraulic-servo tool turret

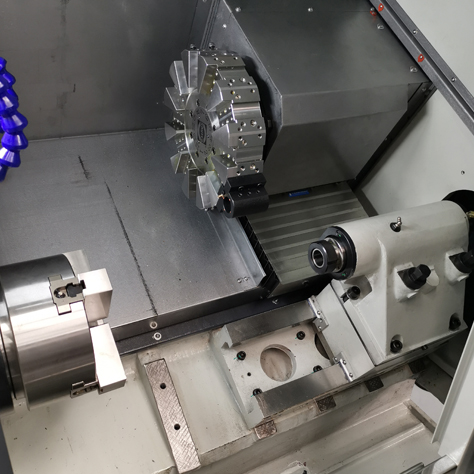

■ H40TC mount C axes and 12T Powered tool turret

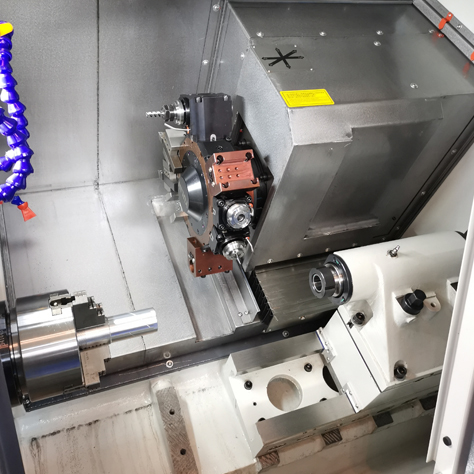

■ H40TY mount C axes and 12T Powered tool turret with 90°Y axes
|
Item
|
Specification
|
Unit
|
BL-H40T
|
BL-H40TC
|
BL-H40TY
|
|
Capacity
|
Chuck size
|
/
|
6’’(8’’*)
|
|
Max. swing dia. over bed
|
mm
|
Φ400
|
|
Max. swing dia. over saddle
|
mm
|
Φ300
|
|
Max. turning length
|
mm
|
300(6’’ chuck);
290(8’’ chuck*)
|
260/240(BMT40,6’’/8’’* chuck);
250/235(VDI30*, 6’’/8’’* chuck）
|
240
|
|
Max. turning dia.
|
mm
|
Φ310
|
Φ240(6’’ chuck);
Φ320(8’’ chuck*);
|
Φ225
|
|
Standard turning dia.
|
mm
|
Φ150(6’’ chuck);Φ200(8’’ chuck*)
|
|
Spindle
|
Spindle bore
|
mm
|
Φ56(Φ66*)
|
|
Spindle end type
|
/
|
A2-5(A2-6*)
|
|
Spindle speed
|
rpm
|
5000(4000*)
|
|
Max. bar through dia.
|
mm
|
44(51*)
|
|
Spindle motor power
|
kw
|
11
|
|
X/Z axes
|
X/Y/Z axes linear guideway type
|
/
|
BALL type/BALL type/ROLLER type
|
|
X/Y/Z
axes linear guideway width
|
mm
|
30/30/30
|
|
X/Y/Z
axes ball screw O.D.
|
mm
|
Φ32
|
|
X/Y/Z axes ball screw pitch
|
mm
|
10
|
|
X axes travel
|
mm
|
180
|
180
|
110
|
|
Y axes travel
|
mm
|
/
|
/
|
70
|
|
Z axes travel
|
mm
|
320
|
280
|
250
|
|
X/Z axes rapid moving speed
|
m/min
|
30
|
|
Y axes rapid moving speed
|
m/min
|
/
|
/
|
8
|
|
Tool turret
|
Tool turret type
|
/
|
8T/12T* Hydraulic-servo
tool turret
|
12T BMT40 Powered tool turret;
12T VDI30 Powered tool turret*
|
12T BMT40 Powered tool turret with Y axes
|
|
Toolshank size
|
mm
|
25×25, Φ40(SAUTER 8T);
20*20,Φ25/32(SAUTER 12T*);
25×25, Φ32(GSA 8T*)
|
20×20, Φ32
|
20×20, Φ32
|
|
Live tool type
|
|
/
|
ER20(BMT40);ER25(VDI 30)
|
ER20(BMT40)
|
|
Tailstock
|
Tailstock quill taper
|
/
|
MT4#
|
|
Tailstock quill dia./travel
|
mm
|
Φ70/70
|
|
Accuracy
|
Positioning accuracy(X/Z)
|
mm
|
0.008/1000
|
|
Repeat positioning accuracy(X/Y/Z)
|
mm
|
≤0.005
|
|
Others
|
Overall size
|
mm
|
2180×1830×1710
|
|
N.W.
|
kg
|
3100
|
3200
|
3300
|
|
Item
|
Brand
|
|
Spindle unit
|
TAIWAN-ROYAL
|
|
Tool turret
|
TAIWAN-GSA/GERMANY-SAUTER/
TAIWAN-YULIN/SWIFT
|
|
Ball screw
|
TAIWAN-HIWIN C3 class
|
|
Ball screw bearing
|
GERMANY-FAG
|
|
Linear guideway
|
TAIWAN HIWIN P class
|
|
Lubrication system
|
TAIWAN-ISHAN
|
|
Rotary oil cylinder&chuck
|
TAIWAN-AUTOGRIP
|
|
Hydraulic parts
|
TAIWAN/JAPAN
|
|
Heat exchanger
|
Joint-venture
|
|

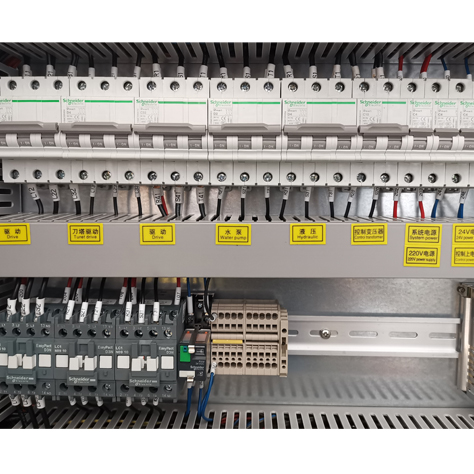

Main electricity parts
|
FRANCE-SCHNEIDER
|
Standard configuration:
●SIEMENS 808D ADVANCED CNC controller
●Hydraulic chuck
●Hydraulic-servo tool turret
●Hydraulic tailstock
Optional configuration:
●SYNTEC/SIEMENS 828D/FANUC CNC controller
●C axes& powered tool turret
●Y axes
●Automatic chip conveyor
●Tool setting probe
