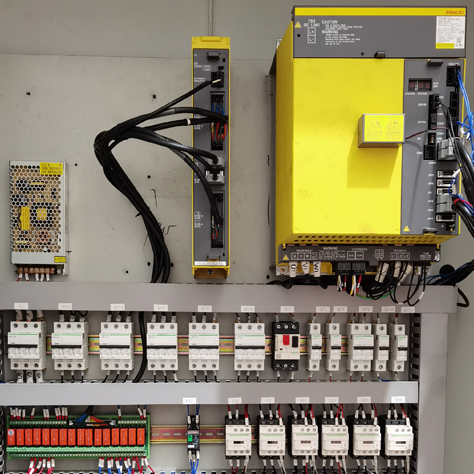

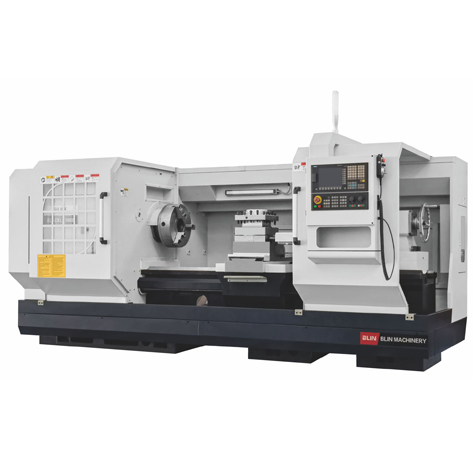

Item
|
Specification
|
Unit
|
BL-CKL6163
|
BL-CKL6180A
|
BL-CKL6180B
|
BL-CKL61100
|
|
Capacity
|
Guideway width
|
mm
|
550
|
600
|
|
Max. swing dia. over bed
|
mm
|
Φ630
|
Φ800
|
Φ800
|
Φ1000
|
|
Max. swing dia. over slide
|
mm
|
Φ350
|
Φ520
|
Φ480
|
Φ680
|
|
Center distance
|
mm
|
1000/1500/2000/3000/4000/5000/6000
|
|
Max. loading capacity
|
t
|
3
|
4
|
|

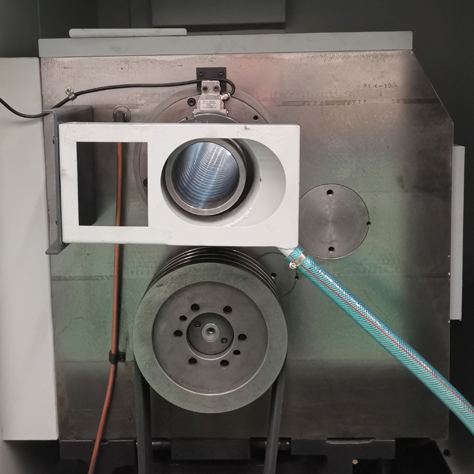

Spindle
|
Spindle bore
|
mm
|
Φ104
|
|
Spindle bore taper
|
/
|
Metric Φ120 MT5#
|
|
Spindle speed
|
rpm
|
10~1000(manual
3 class gears,stepless in every class)
|
10~800(manual 3 class gears,stepless in every class)
|
|
Spindle nose type
|
/
|
C11
|
|
Chuck size
|
mm
|
Manual 3-jaw
Φ315
|
Manual 3-jaw Φ400
|
|
Spindle motor
|
kw
|
11
|
15
|
|
Feeding axes
|
X axes travel
|
mm
|
320
|
420
|
420
|
520
|
|
Z axes travel
|
mm
|
850/1350/1850/2850/3850/4850/5850
|
|
X/Z axes rapid rate
|
m/min
|
4/6
|
|

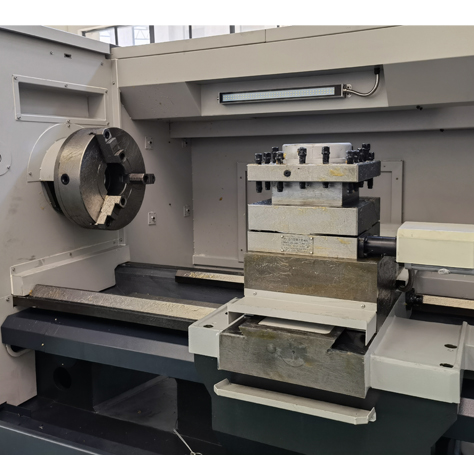

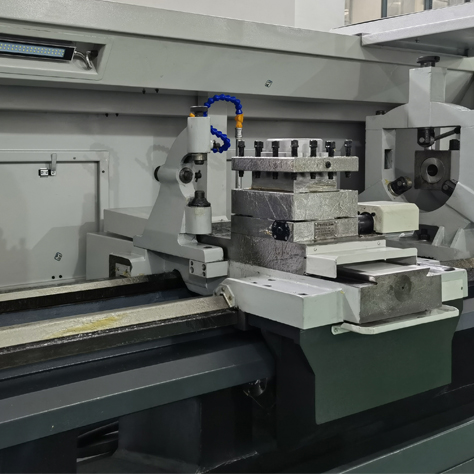

Tool post
|
Tool post type
|
mm
|
4 station electric tool post
|
|
Toolshank size
|
mm
|
32×32
|
32×32
|
32×32
|
40×40
|
|

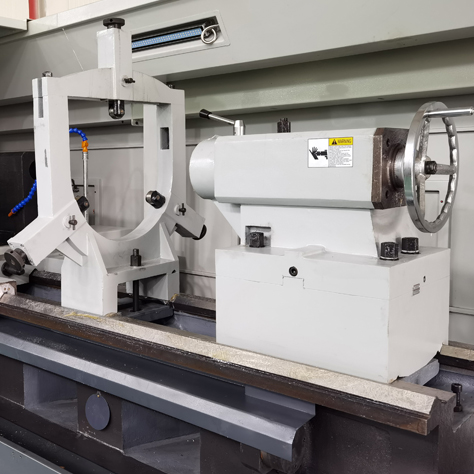

Tailstock
|
Tailstock quill travel
|
mm
|
250
|
|
Tailstock quill dia.
|
mm
|
Φ100
|
Φ120
|
|
Tailstock quill taper
|
/
|
MT5#
|
MT6#
|
|
Overall size
|
L
|
mm
|
3300/3800/4300/5300/6300/
7300/8300
|
3500/4000/4500/5500/6500/7500/8500
|
|
W×H
|
mm
|
1750×1850
|
1850×1900
|
1950×1900
|
2000×2100
|
|
Weight
|
N.W.
|
T
|
3.7/4.1/4.5/5.3/6.1/6.9/7.7
|
3.9/4.3/4.7/5.5/6.3/7.1/7.9
|
4.8/5.2/5.6/6.4/7.2/8/8.8
|
5/5.4/5.8/6.6/
7.4/8.2/9
|
