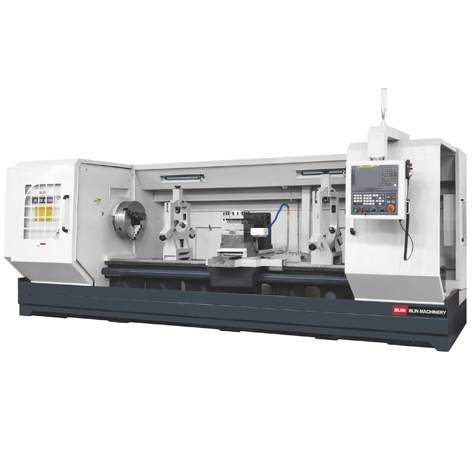

■Guideway width 755mm,spindle bore Φ130mm,heavy-duty type,suitable for heavy cutting
■Mono-block bed,high rigidity
■Adopt China top quality compound resin sand cast iron,after aging treatment,good precision keeping
■Guideway hardened by ultrasonic frequency, good precision keeping, long using lifespan
■Guideway stick PTFE,remove creeping,good wearability
■Adopt manual 4 class gear spindle, stepless speed in every class
|
Item
|
Specification
|
Unit
|
BL-CK61100
|
BL-CK61125
|
BL-CK61140
|
BL-CK61160
|
|
Capacity
|
Guideway width
|
mm
|
755
|
|
Max. swing dia. over bed
|
mm
|
Φ1000
|
Φ1250
|
Φ1400
|
Φ1600
|
|
Max. swing dia. over slide
|
mm
|
Φ610
|
Φ850
|
Φ1000
|
Φ1200
|
|
Center distance
|
mm
|
1500/3000/4000/5000/6000
|
|
Max. loading capacity
|
t
|
6
|
|
Spindle
|
Spindle bore
|
mm
|
Φ130
|
|
Spindle bore taper
|
mm
|
Metric Φ140/MT6#
|
|
Spindle speed
|
rpm
|
4~300(manual 4 class gears,speed stepless in every class)
|
|
Spindle nose type
|
/
|
A2-15
|
|
Chuck size
|
mm
|
Manual 4-jaw Φ1000mm
|
|
Spindle motor
|
kw
|
22
|
|
Feeding axes
|
X axes travel
|
mm
|
520
|
620
|
720
|
720
|
|
Z axes travel
|
mm
|
1350/2850/3850/4850/5850
|
|
X/Z axes rapid rate
|
m/min
|
4/6
|
|
Tool post
|
Tool post type
|
mm
|
4 station electric tool post
|
|
Toolshank size
|
mm
|
40×40
|
|
Tailstock
|
Tailstock quill travel
|
mm
|
300
|
|
Tailstock quill dia.
|
mm
|
Φ160
|
|
Tailstock quill taper
|
/
|
MT6#
|
|
Overall size
|
L
|
mm
|
5000/6500/7500/8500/9500
|
|
W×H
|
mm
|
2100×2100
|
2250×2300
|
2350×2450
|
2350×2600
|
|
Weight
|
N.W.
|
T
|
10/11.5/12.5/13.5/14.5
|
11/12.5/13.5/14.5/15.5
|
12/13.5/14.5/15.5/16.5
|
13/14.5/15.5/16.5/17.5
|
Standard configuration:
●GSK controller
●Manual chuck
●4 station tool post
●Manual tailstock
Optional configuration:
●SIEMENS 808D ADVANCED/FANUC 0I TF controller
●6/8 station tool turret
●Hydraulic tailstock
