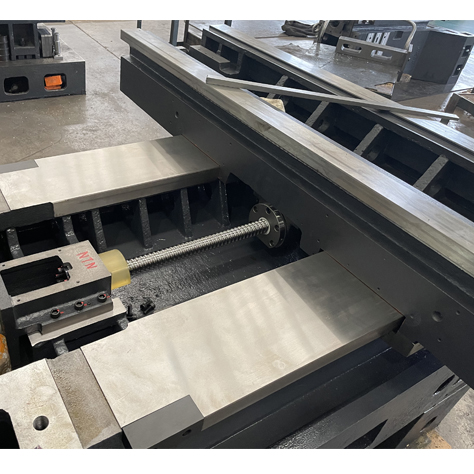

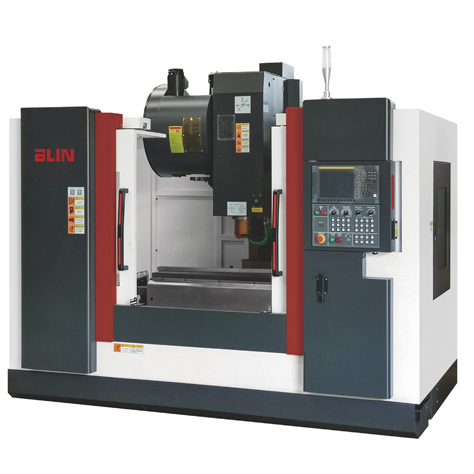

■3 axes adopt WIDE RECTANGLE BOX guideway, Heavy-duty type,suitable for heavy-duty cutting
■Adopt CHINA top class cast iron

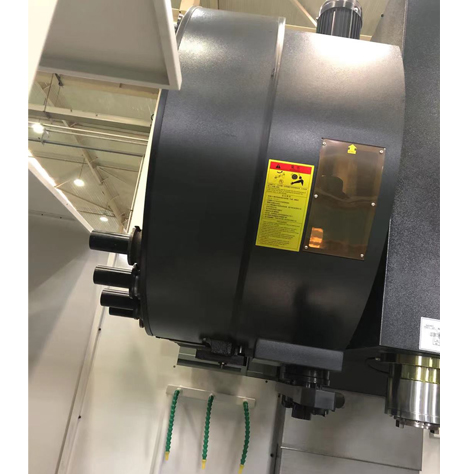

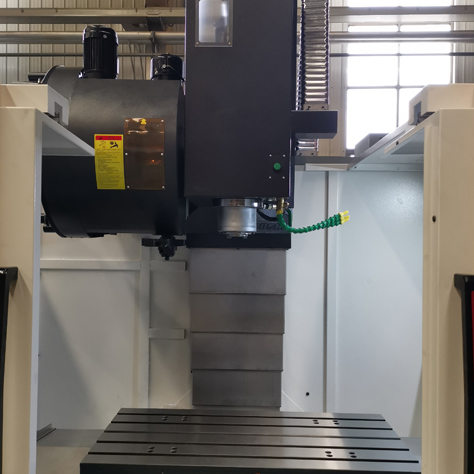

■Use 24T Arm type ATC, fast and stable tool changing
■3 axes use TAIWAN C3 class precision ball screw
■Adopt TAIWAN precise spindle unit
|
Item
|
Specification
|
Unit
|
BL-B850
|
BL-B1060
|
BL-B1580
|
|
Guideway
|
X/Y/Z axes guideway type
|
/
|
HARD BOX
|
HARD BOX
|
HARD BOX
|
|
Worktable
|
Table size
|
mm
|
1050×500
|
1300×600
|
1700×800
|
|
Table max. loading
|
kg
|
600
|
800
|
1500
|
|
T slot(NO./width/gap)
|
mm
|
5/18/90
|
5/18/120
|
5/22/135
|
|
Travel
|
X/Y/Z axes
|
mm
|
800/500/550
|
1000/600/600
|
1500/800/700
|
|
Spindle
|
Distance from spindle nose to table
surface
|
mm
|
150~700
|
180~780
|
170~870
|
|
Distance from spindle center to
column surface
|
mm
|
560
|
655
|
800
|
|
Spindle type
|
mm
|
BT40
|
BT40/BT50(opt.)
|
BT50
|
|
Spindle motor
|
kw
|
7.5/11(FANUC)
7(SIEMENS 828D)
|
7.5/11(FANUC)
9(SIEMENS 828D)
|
15/18.5(FANUC)
12(SIEMENS 828D)
|
|
Spindle speed range
|
rpm
|
8000(belt-drive)
(opt.:10000/12000)
|
8000(belt-drive)
(opt.:10000/12000)
|
7000
|
|
Feeding axes
|
Cutting feed speed
|
m/min
|
10
|
10
|
10
|
|
Fast moving speed
|
m/min
|
20/20/20
|
20/20/20
|
20/20/20
|
|
Ball screw O.D./pitch
|
mm
|
Φ40/10
|
Φ40/12
|
Φ63/10(XY)/Φ50/10(Z)
|
|
Precision
|
Positioning precision
|
mm
|
0.012/0.010/0.012
|
0.015/0.012/0.012
|
0.028/0.018/0.020
|
|
Repeatable positioning precision
|
mm
|
0.008/0.006/0.008
|
0.010/0.008/0.008
|
0.018/0.010/0.013
|
|
Tool magazine
|
Tool magazine type
|
/
|
Umbrella type 20T/Arm type 24T
|
|
Max. tool weight
|
kg
|
8
|
8
|
15
|
|
Max. tool length
|
mm
|
300
|
300
|
350
|
|
Max. tool dia.
|
mm
|
Φ80
|
Φ80
|
Φ110
|
|

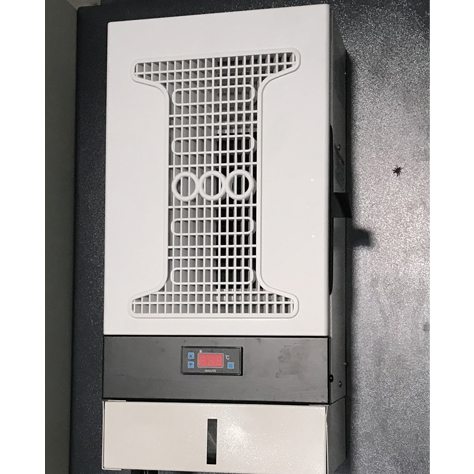

Others
|
Total power
|
KVA
|
15
|
20
|
35
|
|
Overall dimension(L×W×H)
|
mm
|
2800×2300×3100
|
3200×2750×3200
|
4300×3750×3100
|
|
Gross weight/Net weight
|
kg
|
6500/6000
|
8000/7500
|
13000/12500
|
|
Parts
|
Brand
|
|
Bearings
|
JAPAN NSK/NTN
|
|
Ball screw
|
TAIWAN HIWIN/PMI
|
|
Spindle
|
TAIWAN
|
|

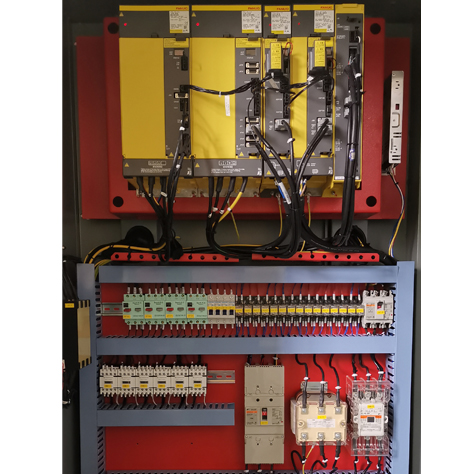

Servo motor& driver
|
GERMAN
SIEMENS/JAPAN FANUC
|
|
Air-oil cylinder
|
TAIWAN
|
|
Lubrication pump
|
JAPAN HERG
|
Standard configuration:
●FANUC 0I MF CNC Controller
●24T ARM type tool magazine

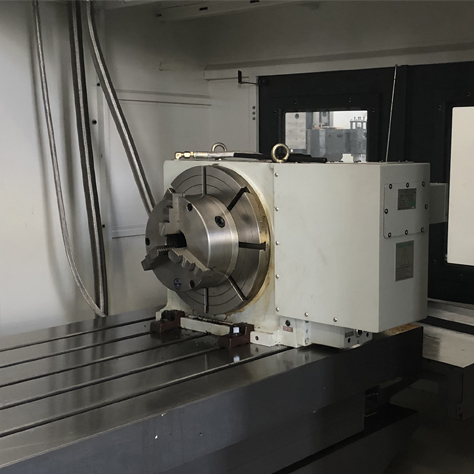

Optional configuration:
●SIEMENS 828D CNC Controller
●20T Umbrella type tool magazine
●Chip conveyor
●ZF reduction box
