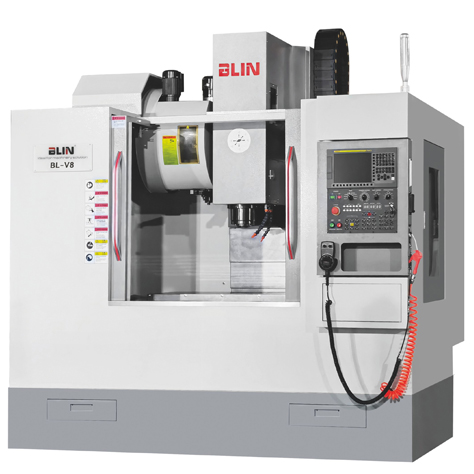

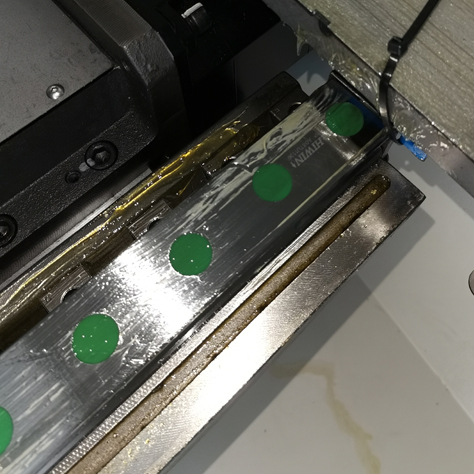

■3 axes ROLLER type linear guideway, Heavy-duty type,suitable for heavy-duty cutting
■Whole production process accord to TAIWAN standard
■Most parts adopt GERMAN/JAPAN/TAIWAN brand
■High speed, high precision, long using lifespan

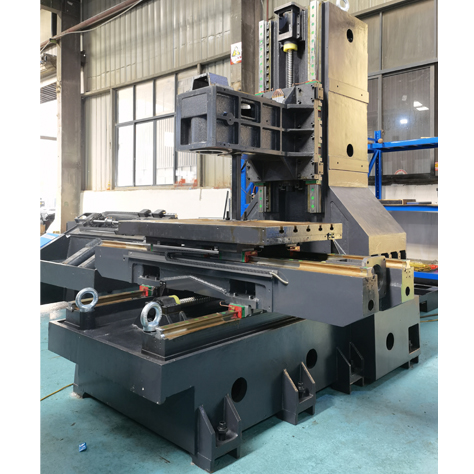

■Adopt HT300 high class cast iron,after aging treatment and FEA analysis
■Bridge shape column, high rigidity, high stability

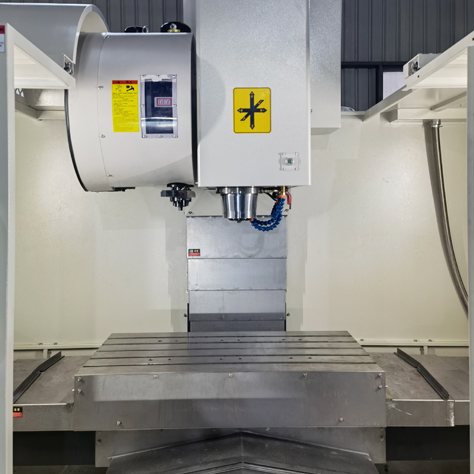

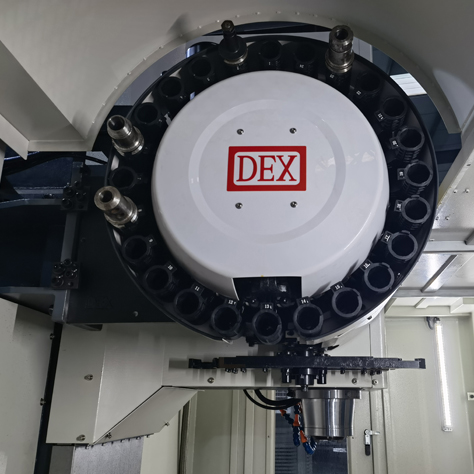

■Use 24T Arm type ATC, adopt CAM driving, fast and stable tool changing, tool selection for bi-way as random.
■3 axes use C3 class precision ball screw, match up nut preloading and ball screw pre-stretching, pre-eliminate backlash and temperature rising, ensure stable positioning and repeatable positioning precision
|
Item
|
Specification
|
Unit
|
BL-V8
|
BL-V11
|
|
Worktable
|
Table size
|
mm
|
1000×550
|
1200(1300*)×600
|
|
T slot(NO./width/gap)
|
mm
|
5/18/90
|
5/18/100
|
|
Table max. loading
|
kg
|
700
|
900
|
|
Travel
|
X/Y/Z axes travel
|
mm
|
800/550/550
|
1100/600/600
|
|
Spindle
|
Distance from spindle nose to table surface
|
mm
|
120~670
|
120~720
|
|
Distance from spindle center to column face
|
mm
|
600
|
650
|
|
Spindle type
|
/
|
BT40
|
|
Spindle motor
|
kw
|
7.5/11; 11/15(opt.)
|
11/15
|
|
Spindle speed
|
rpm
|
8000(option:10000 belt-drive;12000/15000 direct-drive)
|
|
Feeding
axes
|
X/Y/Z axes linear guideway width
|
mm
|
35/45/45(ROLLER type)
Z axes 6pcs slide blocks
|
45/45/45(ROLLER type)
X,Z axes 6pcs slide blocks
|
|
X/Y/Z axes max. rapid moving speed
|
m/min
|
48/48/48
|
36/36/36
|
|
X/Y/Z axes ball screw dia./pitch
|
mm
|
40/16
|
40/12
|
|
X/Y/Z axes motor torque
|
Nm
|
22/22/22
|
|
Precision
|
Positioning precision
|
mm
|
±0.005
|
|
Repeatable positioning precision
|
mm
|
±0.003
|
|
Tool
magazine
|
Tool magazine type
|
/
|
24T Arm type
|
|
Max. tool weight
|
kg
|
7
|
8
|
|
Max. tool length
|
mm
|
280
|
|
Max. tool dia.(fully loaded)
|
mm
|
80
|
|
Max. tool dia.(no adjacent)
|
mm
|
110
|
|
Tool changing time
|
/
|
Tool to tool: 1.8s
|
Tool to tool: 2s
|
|
Others
|
Overall Size
|
mm
|
2500×2200×2500
|
2900×2300×2600
|
|
Weight
|
kg
|
5500
|
7200
|
|
Item
|
Brand
|
|
Spindle bearing
|
JAPAN-NSK/GERMANY-FAG
|
|
Ball screw bearing
|
JAPAN-NACHI/GERMANY-FAG
|
|
Linear guideway
|
TAIWAN-HIWIN,PMI/GERMANY-REXROTH
|
|
Ball screw
|
TAIWAN-HIWIN/PMI
|
|
Shaft coupler
|
JAPAN-NBK/MIKI PULLEY
|
|
Spindle
|
TAIWAN-KENTURN/VYU CHENG
|
|
Tool magazine
|
TAIWAN-DEX
|
|
Booster cylinder
|
TAIWAN-CHEN SOUND
|
|

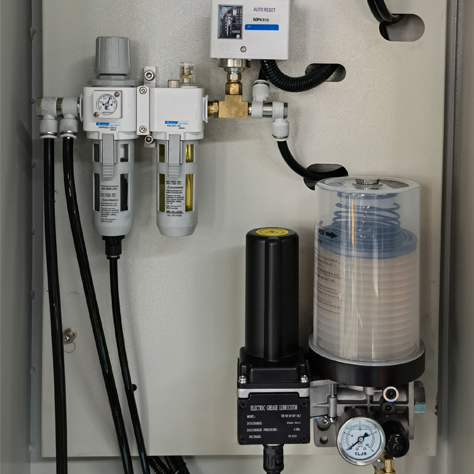

Pnuematic parts
|
TAIWAN-MINDMAN
|
|
Lubrication pump
|
JAPAN-LUBE
|
|

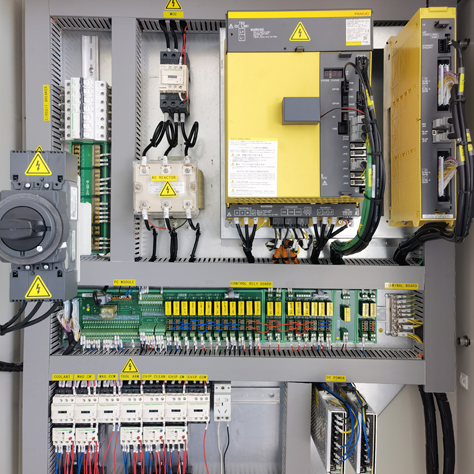

Electric parts
|
FRANCE-SCHNEIDER
|
Standard configuration:
●FANUC 0i MF CNC Controller
●24T Arm type tool magazine
Optional configuration:
●SIEMENS 828D CNC controller
●Chip conveyor
●Coolant through spindle
●Tool setting probe
●4th axes
●5th axes
