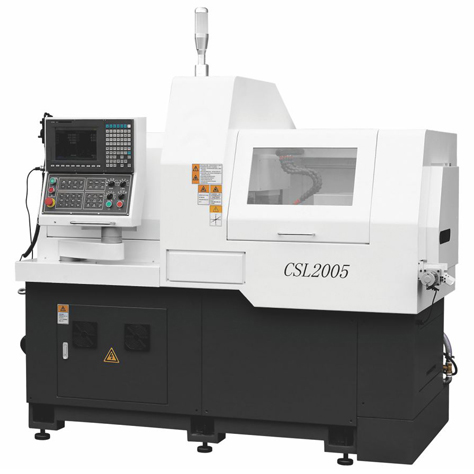

■ Adopt TAIWAN technology,most parts adopt GERMANY/JAPAN/TAIWAN brand
■ Adopt HT300 resin sand cast iron, after aging treatment, small distortion, good heat stability and high rigidity
■ Adopt high precision built-in electric main spindle,NSK super high precise angle contact ball bearing, achieve spindle’s high rigidity and good precision retention,spindle flop≤2μm
■ Adopt high precision ball screw and linear guideway, repeat positioning accuracy ≤3μm

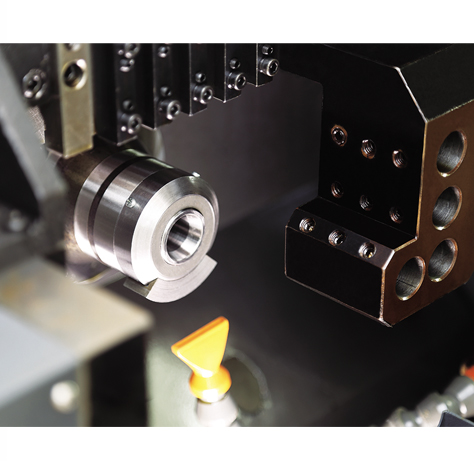

■ Can select guide bushless or fixed guide bushing type or rotary guide bushing type

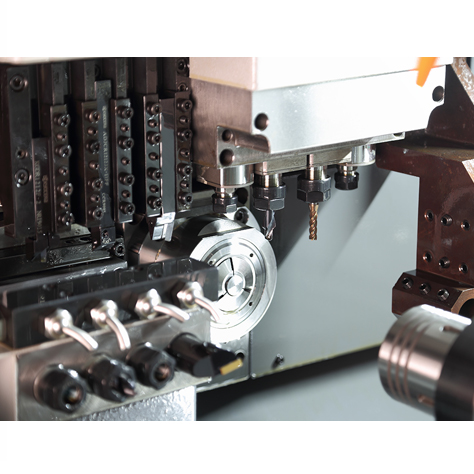

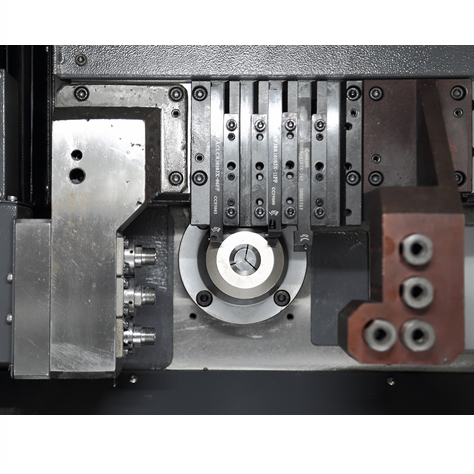

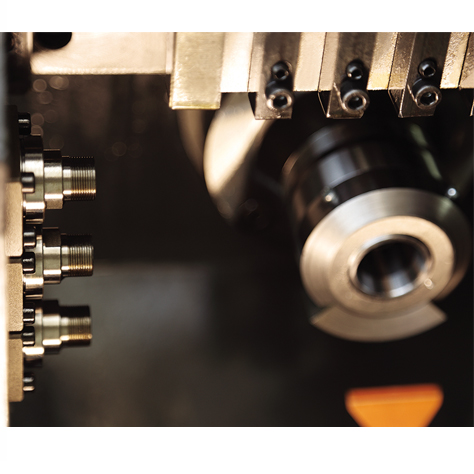

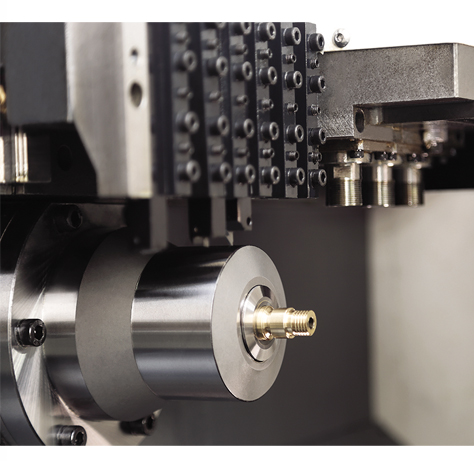

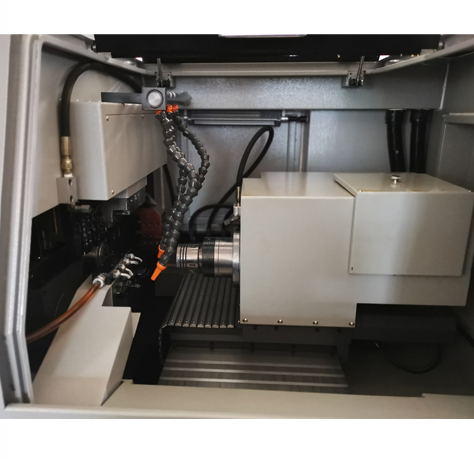

■ Adopt gang type tool, can achieve various machining by side-mounted live tool and C axes
■ After mount automatic bar feeder, can realize automatic machining
■ Suitable for complex, small-sized,precise,slender axles workpiece machining
|
Item
|
Unit
|
BL-CSL1203
|
BL-CSL2003
|
BL-CSL2005
|
BL-CSL2605
|
|
Max. machineable bar dia.
|
mm
|
Φ12
|
Φ20
|
Φ20
|
Φ24
|
|
Main spindle bore
|
mm
|
Φ16
|
Φ25
|
Φ25
|
Φ26
|
|
Max. machineable length
|
Fixed guide bushing
|
mm
|
140
|
200
|
200
|
200
|
|
Rotary guide bushing
|
mm
|
50
|
180
|
180
|
180
|
|
Guide bushless
|
mm
|
/
|
50
|
50
|
50
|
|
Max. clamping dia. of back spindle
|
mm
|
/
|
/
|
Φ20
|
Φ24
|
|
Max. face drilling dia.
|
mm
|
Φ7
|
Φ10
|
Φ10
|
Φ10
|
|
Max. face tapping dia.
|
mm
|
M6
|
M8
|
M8
|
M8
|
|
Main spindle speed
|
rpm
|
8000
|
6000
|
6000
|
6000
|
|
Back spindle speed
|
rpm
|
/
|
/
|
6000
|
6000
|
|
Live tool speed
|
rpm
|
5000(opt.)
|
5000
|
5000
|
5000
|
|
Rapid moving speed(X/Y/Z/X1/Z1)
|
m/min
|
20/24/24
|
20/24/24
|
20/24/24/24/24
|
20/24/24/24/24
|
|
Spindle flopping
|
mm
|
≤0.002
|
≤0.002
|
≤0.002
|
≤0.002
|
|
Repeat positioning accuracy
|
mm
|
≤0.003
|
≤0.003
|
≤0.003
|
≤0.003
|
|
O.D. tool
|
mm
|
5(□10)
|
5(□12)
|
5(□12)
|
5(□12)
|
|
Axial drilling tool
|
/
|
4(ER11)
|
4(ER16)
|
4(ER16)
|
4(ER16)
|
|
Radial live tool
|
/
|
3(ER11)(opt.)
|
2(ER11)+2(ER16)
|
2(ER11)+2(ER16)
|
2(ER11)+2(ER16)
|
|
Back drilling tool
|
/
|
/
|
/
|
4(ER16)
|
4(ER16)
|
|
Main spindle power
|
kw
|
3.7
|
4.2
|
4.2
|
4.2
|
|
Back spindle power
|
kw
|
/
|
/
|
4.2
|
4.2
|
|
Side live tool motor power
|
kw
|
0.4(opt.)
|
0.75
|
0.75
|
0.75
|
|
Coolant pump
|
kw
|
0.22
|
0.22
|
0.46
|
0.46
|
|
Overall size
|
mm
|
1510×1000×1660
|
1600×1250×1760
|
2000×1300×1750
|
2000×1300×1750
|
|
N.W.
|
kg
|
1200
|
2000
|
2500
|
2500
|
|
Item
|
Brand
|
|
CNC controller
|
TAIWAN-SYNTEC
|
|
Spindle driver
|
TAIWAN-SYNTEC
|
|
Servo electric spindle
|
Own-made
|
|
Ball screw
|
TAIWAN-HIWIN
|
|
Linear guideway
|
TAIWAN HIWIN
|
|
Spindle and ball screw bearing
|
JAPAN-NSK
|
|
Lubrication system
|
JAPAN-HERG
|
|
Main electricity parts
|
FRANCE-SCHNEIDER
|
|
Pneumatic parts
|
TAWAN-AIRTAC
|
|
Nuts
|
TAIWAN-YINSH
|
|
Shaft coulping
|
GERMANY-KTR
|
Standard configuration:
●SYNTEC 21TB/210TB CNC controller
●Fixed guide bushing
●Live tool
