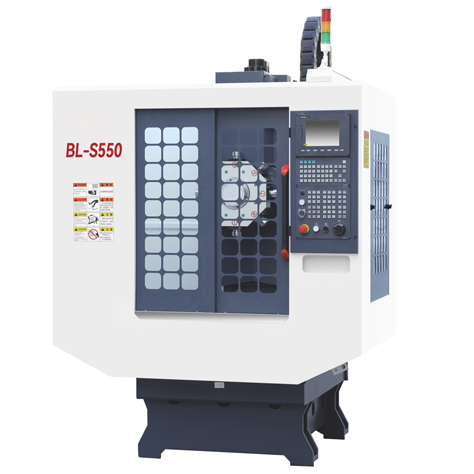

BL-S450/550/640/850

8T PATENT HIGH SPEED ATC

HIGH RIGIDITY

HIGH EFFICIENCY

  • Features
  • SPECIFICATION
  • MAIN PARTS LIST
  • CONFIGURATION

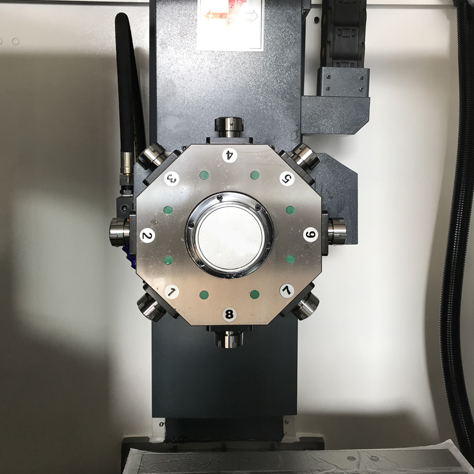

■PATENT design high speed& high rigidity TURRET type tool changer
■Super FAST tool changing(HIGH EFFICIENCY)
■Especially suitable for STEEL, CASTING etc hard material BIG hole’s DRILLING and TAPPING etc RIGID MACHINING
■Especially suitable for multiple operation’s combination, batch and high efficiency production
■Machining efficiency is higher than CNC Milling Machine, Rigidity is higher than traditional CNC drilling& tapping center
■Tool changer driven by servo motor(HIGH PRECISION), lock by hydraulic(HIGH RIGIDITY)
■Adopt HT300 class cast iron
■3 axes adopt wide linear guideway, high rigidity

■3 axes adopt big pre-stretched ball screw


Comparison with common tool magazine of cnc machining center

Our 8T tool magazine

Tool magazine of cnc machining center

Simple structure, good stability

Complex structure,high failure rate

Tool changing speed 1.2s

Tool changing speed 3s

Can change tool at random height

Have to change tool at required height

Tool never drop

Sometimes tool drop

No pull studs

Pull studs easy wear

Spindle not wear

Spindle easy wear

Tool holder will not block

Tool holder usually block

Good precision stability

                      Easy stick chips in spindle,difficult to keep stability

Tool qty max. 8T

Can be 16-24T

Max. speed only 6000rpm

Can be 6000-12000rpm

Tool holder not compatible

Tool holder is compatible

Tools has big interference

Small interference



Item

Specification

Unit

BL-S450

BL-S550

BL-S640

BL-S850

Capacity

Max. drilling dia.(U driller)

mm

Φ20

Φ22

Φ24

Φ30

Max. tapping dia.(standard/optional)

mm

M12/M16

M14/M24

M16/M27

M16/M33

Worktable

Table size(L×W)

mm

550×320

600×350

650×380

1000×500

T slot(NO./width/distance)

mm

3/14/92

3/14/92

3/14/114

5/18/90

Table max. loading

kg

180

230

300

600

Spindle

Spindle motor power

kw

3.7/5.5

5.5/7.5

5.5/7.5

7.5/11

Spindle type

/

Own-made(ER32)

Own-made(ER32)

Own-made(ER40)

Own-made(ER40)

Spindle speed range

rpm

6000

Distance from spindle nose to table face

mm

130~460

80~520

105~505

100~600

X/Y/Z axes

X/Y/Z axes travel

mm

435/280/330

550/350/440

600/390/400

800/500/500

X/Y/Z axes rapid moving speed

m/min

32

X/Y/Z axes positioning accuracy

mm

±0.008/300

X/Y/Z axes repeatable positioning accuracy

mm

0.005

XY/Z axes linear guideway width

mm

30/30/35

30/30/35

35/35/35

35/35/35(ROLLER type)

Tool magazine

Tool magazine type

/

Patent designed turret type

Tool changing time

s

1.2

1.2

1.5

1.5

Tools qty

pc

8

Max. tool dia.

mm

Φ63

Φ63

Φ80

Φ80

Others

Overall dimension(L×W×H)

mm

1400×1500×2300

1580×1800×2100

2000×1650×2400

2400×1700×2100

Weight

kg

1850

2000

2500

4500


Item

Brand

Ball screw

TAIWAN-SHAC/PMI/HIWIN C3 class

Linear guideway

TAIWAN-PMI/HIWIN H class

Ball screw bearing

CHINA top-HRB P4 class

Spindle

Own-made

Spindle bearing

CHINA Top-HRB

Tool magazine belt wheel& belt

USA-GATES

Tool magazine bearing

JAPAN-NSK

Main electric parts

FRANCE-SCHNEIDER

Lubrication pump

              Joint-venture


Standard configuration:

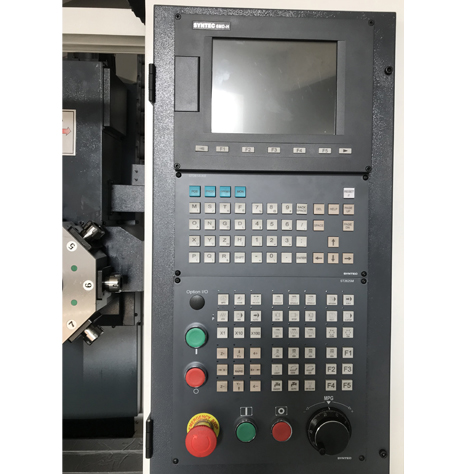

●SYNTEC 6MD CNC controller

Optional configuration:
●SYNTEC 22MA/FANUC 0I MF CNC controller
●4th axes
