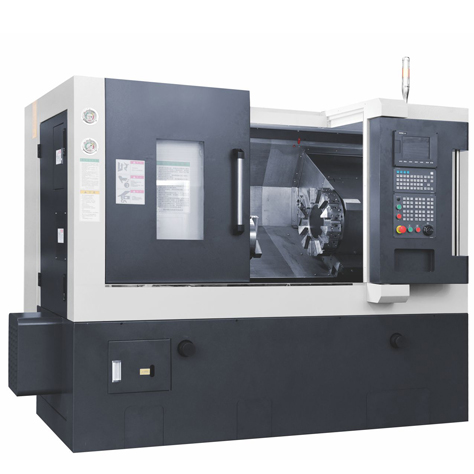

■ Adopt TAIWAN technology, designed by TAIWAN engineer, most parts adopt GERMANY/JAPAN/TAIWAN brand
■ Adopt 30°integral slant bed design
■ X,Z axes adopt 45mm big width linear guideway,super high rigidity
■ Adopt modularization design, easy for various especial configuration choice, such as tool setter etc

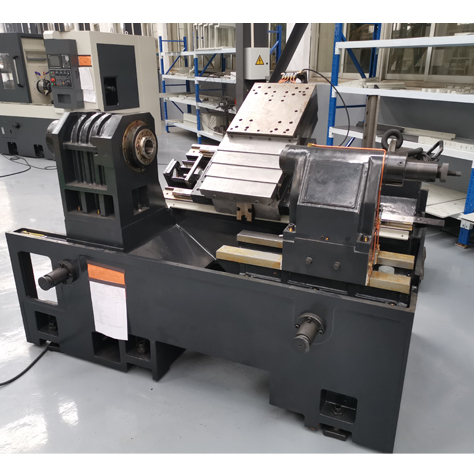

■ Adopt MEEHANITE class cast iron, after aging treatment, small distortion, good torsional strength, good heat stability
■Base adopt multilayer strengthening rib, ensure bed’s strength and stability
■Adopt high precision integral spindle unit, spindle motor adopt high performance servo motor, big output torque,
high speed,wide adjustment range
■ Spindle adopt double line ROLLER type bearing, high rigidity, suitable for heavy cutting

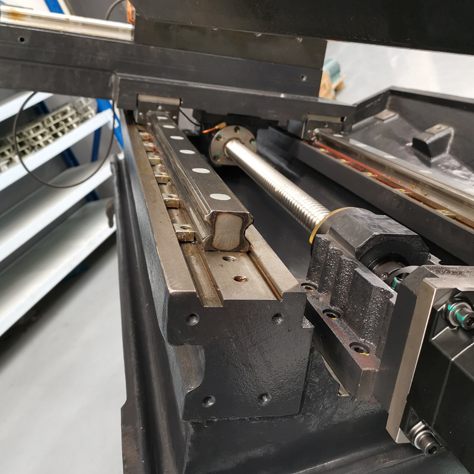

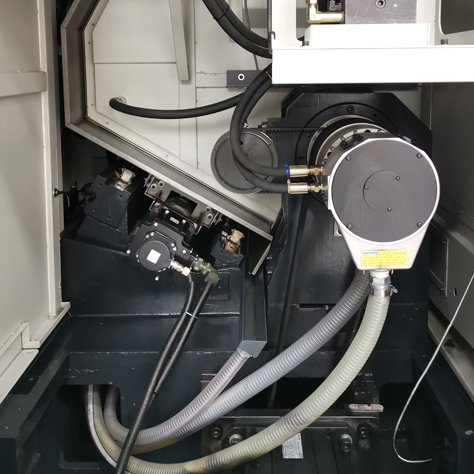

■Adopt high precision C3 class pre-stretched ball screw(double nuts), coupled with feeding motor directly by linkager,
no gap,high transmission rigidity

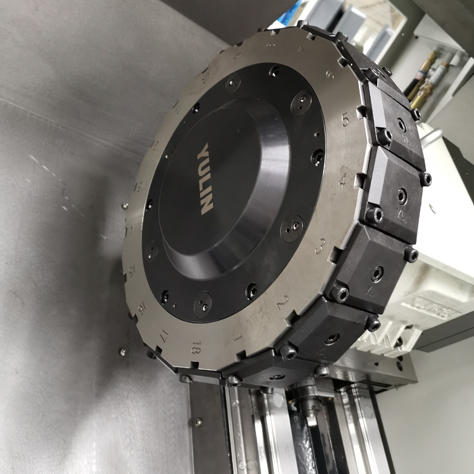

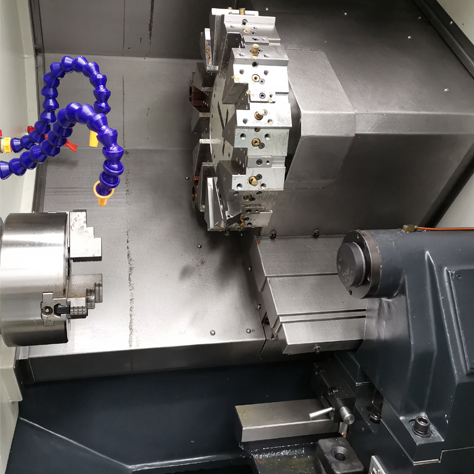

■ H50T mount 12T hydraulic-servo tool turret
■ H50TC mount C axes and 12T Powered tool turret
■ H50TY mount C axes and 12T Powered tool turret with 90°Y axes
|
Item
|
Specification
|
Unit
|
BL-H50T
|
BL-H50TC
|
BL-H50TY
|
|
Capacity
|
Chuck size
|
/
|
8’’(10’’*,12’’*)
|
|
Max. swing dia. over bed
|
mm
|
Φ560
|
|
Max. swing dia. over saddle
|
mm
|
Φ300
|
|
Max. turning length
|
mm
|
485(8’’ chuck);
475(10’’ chuck*);
440(12’’ chuck*)
|
355(8’’ chuck);
|
450(8’’ chuck)
|
|
Max. turning dia.
|
mm
|
Φ400
|
Φ290
|
Φ330
|
|
Standard turning dia.
|
mm
|
Φ200(8’’
chuck);
Φ250(10’’ chuck*);
Φ300(12’’ chuck*)
|
Φ200(8’’ chuck)
|
Φ200(8’’ chuck)
|
|
Spindle
|
Spindle bore
|
mm
|
Φ66(Φ86*)
|
|
Spindle end type
|
/
|
A2-6(A2-8*)
|
|
Spindle speed
|
rpm
|
4000(3500*)
|
|
Max. bar through dia.
|
mm
|
51(74*)
|
|
Spindle motor power
|
kw
|
11(15*)
|
|
X/Z axes
|
X/Y/Z axes linear guideway type
|
/
|
BALL type
|
|
X/Y/Z
axes linear guideway width
|
mm
|
45/30/45
|
|
X/Y/Z
axes ball screw O.D.
|
mm
|
Φ32/Φ32/Φ40
|
|
X/Y/Z axes ball screw pitch
|
mm
|
10
|
|
X axes travel
|
mm
|
230
|
250
|
220
|
|
Y axes travel
|
mm
|
/
|
/
|
90
|
|
Z axes travel
|
mm
|
610
|
500
|
500
|
|
X/Z axes rapid moving speed
|
m/min
|
24/24
|
|
Y axes rapid moving speed
|
m/min
|
/
|
/
|
8
|
|
Tool turret
|
Tool turret type
|
/
|
12T Hydraulic-servo tool turret
|
12T BMT55 Powered tool turret
|
12T BMT55 Powered tool turret with Y axes
|
|
Toolshank size
|
mm
|
25×25, Φ40
|
25×25, Φ32(ER32)
|
25×25, Φ32(ER32)
|
|
Tailstock
|
Tailstock quill taper
|
/
|
MT4#
|
|
Tailstock quill dia./travel
|
mm
|
Φ80/80
|
|
Accuracy
|
Positioning accuracy(X/Z)
|
mm
|
0.008/1000
|
|
Repeat positioning accuracy(X/Z)
|
mm
|
≤0.005
|
|
Others
|
Overall size
|
mm
|
2600×1800×1900
|
|
N.W.
|
kg
|
4000
|
4100
|
4200
|
|
Item
|
Brand
|
|
Spindle unit
|
TAIWAN-ROYAL
|
|
Tool turret
|
GERMANY-SAUTER/TAIWAN-YULIN/SWIFT
|
|
Ball screw
|
JAPAN-THK
|
|
Ball screw bearing
|
JAPAN-NSK
|
|
Linear guideway
|
JAPAN-THK
|
|
Lubrication system
|
TAIWAN-ISHAN
|
|
Rotary oil cylinder&chuck
|
TAIWAN-AUTOGRIP
|
|
Hydraulic parts
|
TAIWAN/JAPAN
|
|
Heat exchanger
|
Joint-venture
|
|
Main electricity parts
|
FRANCE-SCHNEIDER
|
Standard configuration:
●SIEMENS 808D ADVANCED CNC controller
●Hydraulic chuck
●Hydraulic-servo tool turret
●Hydraulic tailstock
Optional configuration:
●SYNTEC/SIEMENS 828D/FANUC 0i TF CNC controller
●C axes& powered tool turret
●Y axes
●Automatic chip conveyor
●Tool setting probe
