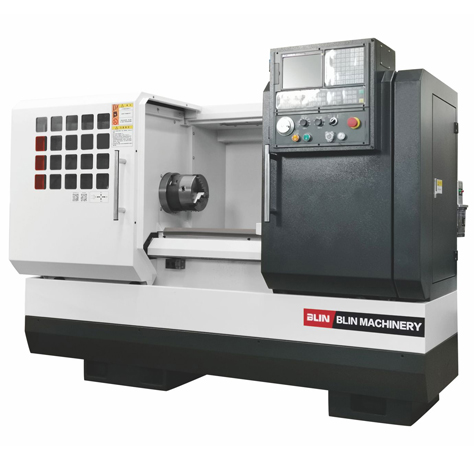

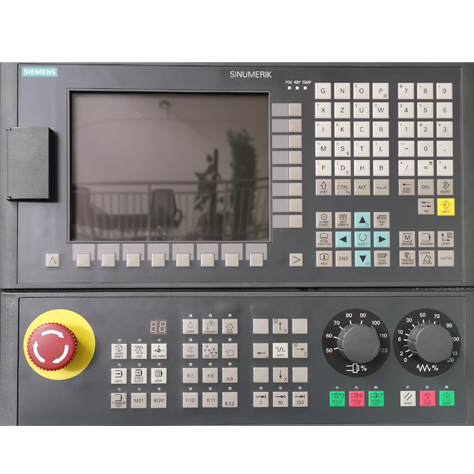

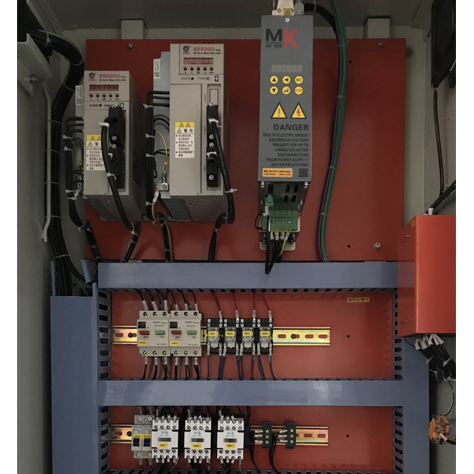

Item
|
Specification
|
Unit
|
BL-TK36S
|
BL-EK40
|
|
Capacity
|
Guideway width
|
mm
|
316
|
|
Max. swing dia. over bed
|
mm
|
Φ360
|
Φ400
|
|
Max. swing dia. over slide
|
mm
|
Φ180
|
Φ200
|
|
Max. turning dia.
|
mm
|
Φ320(vertical 4T tool turret);
Φ220(horizontal 6T tool turret)
|
Φ400
|
|
Center distance
|
mm
|
750/690/650
(vertical 4T/horizontal 6 T tool turret/
Φ75mm tailstock quill)
|
750/1000
|
|
Max turning length
|
mm
|
600/540/500
(vertical 4T/horizontal 6 T tool turret/
Φ75mm tailstock quill)
|
580/830
|
|
Max. workpiece weight
|
kg
|
550(8’’ manual chuck)
|
|

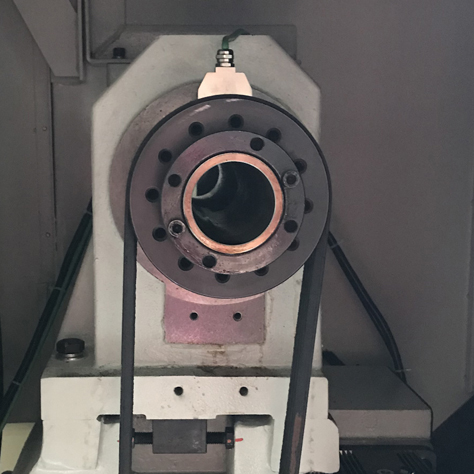

Spindle
|
Spindle bore
|
mm
|
Φ57
|
|
Spindle head type
|
/
|
ISO702/Ⅰ A2-6(manual
chuck, 8’’ hydraulic chuck);
ISO702/Ⅰ A2-5(6’’ hydraulic
chuck)
|
|
Spindle speed
|
rpm
|
140~3000(stepless)
|
|
Spindle motor
|
kw
|
5.5(servo)
|
|
Chuck size
|
/
|
8''
|
|
X/Z axes
|
X axes travel
|
mm
|
200/150
(vertical 4T/horizontal 6T tool turret)
|
230
|
|
Z axes travel
|
mm
|
610/550/510
(vertical 4T/horizontal 6 T tool turret/
Φ75mm tailstock quill)
|
590/840
|
|
X/Z axes rapid speed
|
m/min
|
6/8
|
|
X,Z axes ball screw O.D./pitch
|
mm
|
Φ25/5,Φ40/6
|
|
Tool post
|
Tool turret type
|
/
|
Vertical 4/Horizontal 6 station/gang tool
|
|
Tool shank size
|
mm
|
20×20,Φ32
|
|

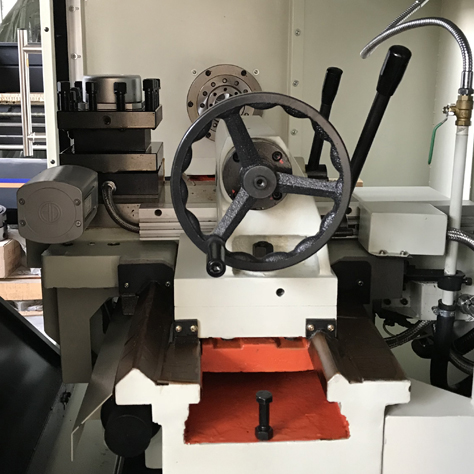

Tailstock
|
Tailstock quill dia./travel
|
mm
|
Φ55/120(hydraulic tailstock: 100);
Φ75/150(hydraulic tailstock:130)
|
Φ65/120
|
|
Tailstock quill taper
|
/
|
MT4#/MT5#(Φ75mm tailstock quill)
|
MT4#
|
|
Accuracy
|
X/Z axes positioning accuracy
|
mm
|
0.026/0.032
|
0.026/0.032(750mm);
0.036(1000mm)
|
|
X/Z axes repeatability positioning accuracy
|
mm
|
0.007/0.009
|
0.007/0.009(750mm);
0.011(1000mm)
|
|
Turning workpiece roundness
|
mm
|
0.004
|
|
Others
|
Total power
|
KVA
|
12
|
|
N.W.
|
kg
|
1700
|
1700(750)/2100(1000)
|
|
Overall size(L×W×H)
|
mm
|
2150×1260×1600
|
2150×1260×1600(750mm)
2400×1260×1600(1000mm)
|
