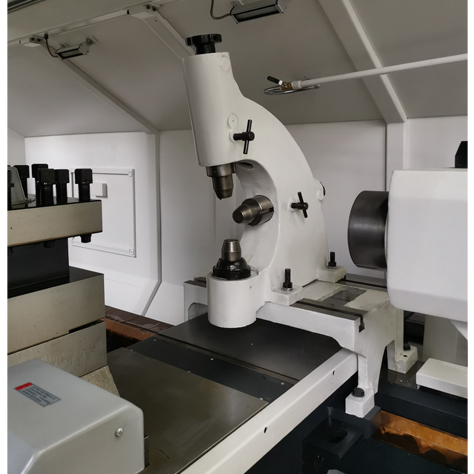

Item
|
Specification
|
Unit
|

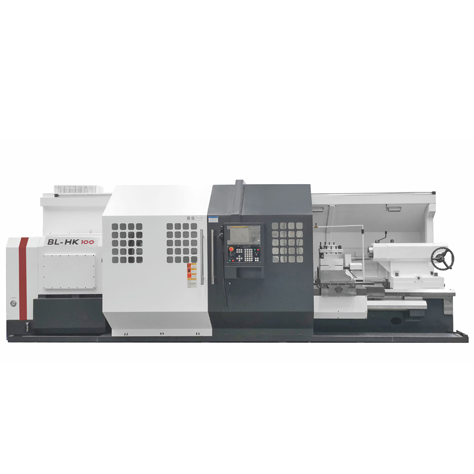

BL-HK80
|
BL-HK100
|
|
Capacity
|
Guideway width
|
mm
|
650
|
755
|
|
Max. swing dia. over bed
|
mm
|
Φ800
|
Φ1040
|
|
Max. swing dia. over slide
|
mm
|
Φ480
|
Φ650
|
|
Max. turning length
|
mm
|
/
|
1300/2800
|
|
Center distance
|
mm
|
1000/1500/2000/3000/4000
|
1500/3000
|
|

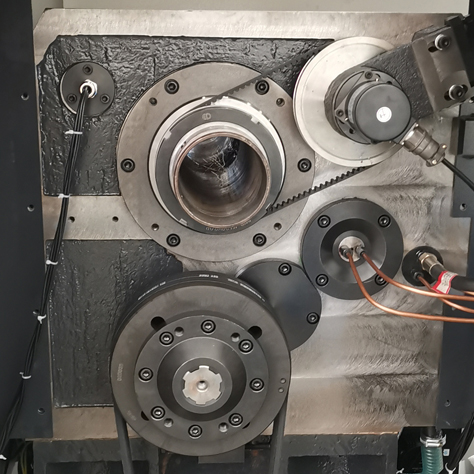

Spindle
|
Spindle bore
|
mm
|
Φ105
|
Φ130
|
|
Spindle head type
|
/
|
A1-11
|
A2-15
|
|
Spindle speed
|
rpm
|
20~1000(4 class, hydraulic automatic class switch, stepless speed in
every class)
Ⅰ 20~204,Ⅱ 39~354,Ⅲ 71~642,Ⅳ 124~1000
|
3.5~500(4 class, hydraulic automatic class switch, stepless speed in
every class)
Ⅰ 3.5~160,Ⅱ 5~233,Ⅲ 7~345,Ⅳ 11~500
|
|
Spindle motor
|
kw
|
15(servo)
|
22(servo)
|
|

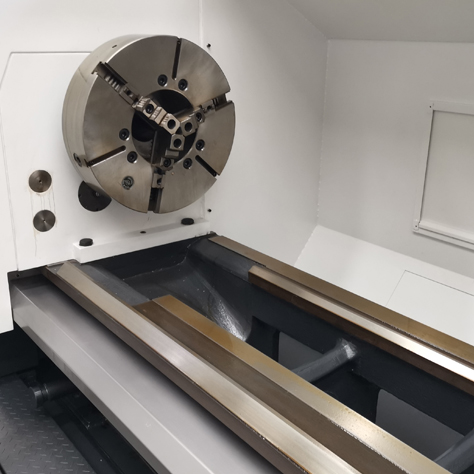

Chuck size
|
mm
|
Φ315(Manual 3-jaw chuck)
|
Φ630(Manual 3-jaw chuck)
|
|
X/Z axes
|
X axes travel
|
mm
|
430
|
520
|
|
Z axes travel
|
mm
|
760/1350/1850/2850/3850
|
1300/2800
|
|
X/Z axes rapid speed
|
m/min
|
6/7
|
3/6
|
|
X axes ball screw O.D./pitch
|
mm
|
Φ40/5
|
Φ40/6
|
|
Z axes ball screw O.D./pitch
|
mm
|
Φ50/8(1000,1500),Φ63/8(2000,3000),Φ63/10(4000)
|
Φ63/10
|
|

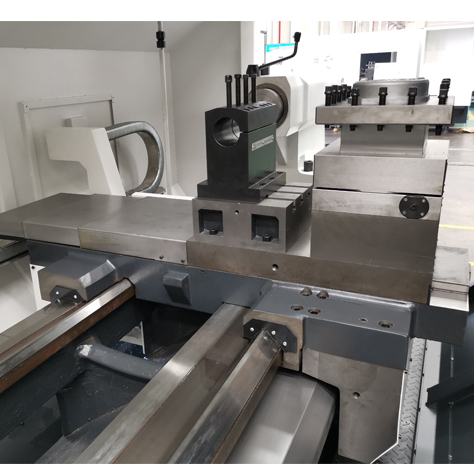

Tool post
|
Tool turret type
|
/
|
Vertical 4 station electric tool turret
|
Vertical 4 station electric tool turret
|
|
Tool shank size
|
mm
|
32×32
|
40×40
|
|

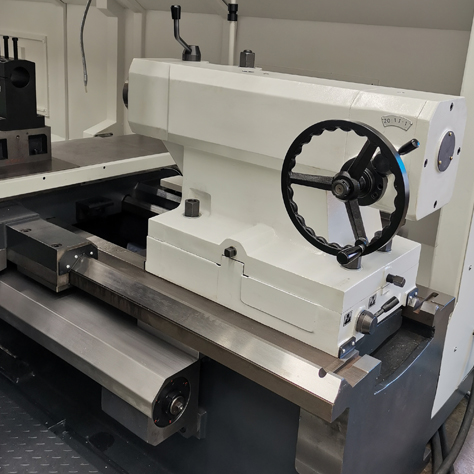

Tailstock
|
Tailstock quill dia.
|
mm
|
Φ100(1000,1500,2000,3000),
Φ140(4000)
|
Φ160
|
|
Tailstock quill travel
|
mm
|
250(1000,1500,2000,3000),
200(4000)
|
300
|
|
Tailstock quill taper
|
/
|
MT5#(1000,1500,2000,3000),
MT6#(4000)
|
MT6#
|
|
Accuracy
|
X/Z axes positioning accuracy
|
mm
|
0.026/0.036(1000),0.040(1500,2000),0.048(3000),0.056(4000)
|
0.040/0.050(1500),0.060(3000)
|
|
X/Z axes repeatability positioning accuracy
|
mm
|
0.007/0.011(1000),0.014(1500, 2000),0.020(3000,4000)
|
0.011/0.018(1500),0.025(3000)
|
|
Turning workpiece roundness
|
mm
|
0.004
|
0.01
|
|
Others
|
Total power
|
KVA
|
40
|
40
|
|
N.W.
|
kg
|
7200/8000/8600/9600/11000
|
10500/12500
|
|
Overall size(L×W×H)
|
mm
|
4280×2200×1900 (1000)
4880×2200×1900 (1500)
5800×2260×1900 (2000)
6850×2260×1900 (3000)
7700×2350×1900 (4000)
|
4640×2300×2100(1500)
6150×2650×2290(3000)
|
