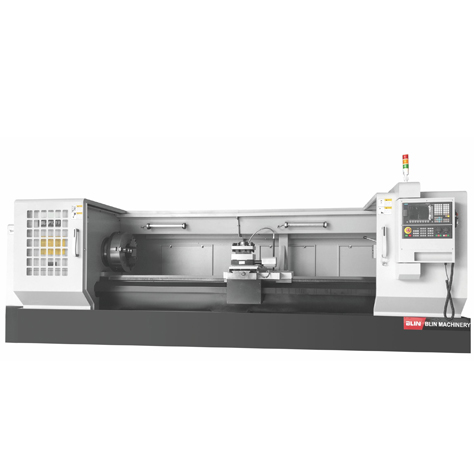

■Guideway width 550/600mm
■Suitable to process internal thread and external thread of pipes, can be also used as standard cnc lathe
■Adopt China top quality compound resin sand cast iron,after aging treatment,good precision keeping
■Guideway hardened by ultrasonic frequency, good precision keeping, long using lifespan
■Guideway stick PTFE,remove creeping,good wearability
■Adopt gear spindle, stepless speed in every class
|
Item
|
Specification
|
Unit
|
BL-QK1313
|
BL-QK1319
|
BL-QK1322
|
BL-QK1325
|
BL-QK1327A
|
|
Capacity
|
Guideway width
|
mm
|
550
|
600
|
|
Max. swing dia. over bed
|
mm
|
Φ630/800
|
Φ800
|
|
Max. swing dia. over slide
|
mm
|
Φ340/520
|
Φ480
|
|
Center distance
|
mm
|
1000/1500/3000
|
|
Pipe threading range
|
mm
|
Φ30~Φ126
|
Φ50~Φ193
|
Φ50~Φ220
|
Φ50~Φ250
|
Φ50~Φ270
|
|
Max. loading capacity
|
t
|
3
|
4
|
|
Spindle
|
Spindle bore
|
mm
|
Φ130
|
Φ200
|
Φ225
|
Φ255
|
Φ280
|
|

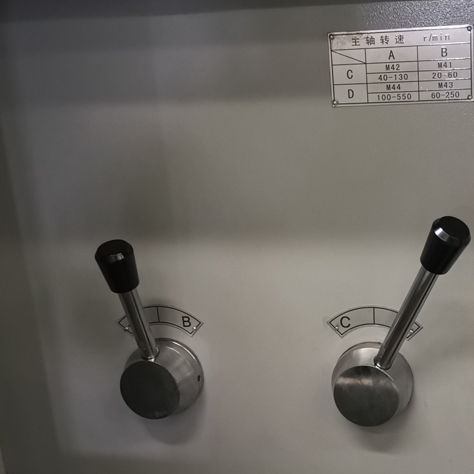

Spindle speed steps
|
/
|
Manual 3 class, stepless
|
Manual 4 class, stepless
|
Manual 4 class, stepless
|
Manual 4 class, stepless
|
Manual 4 class, stepless
|
|
Spindle speed range
|
rpm
|
30~720
|
20~550
|
20~550
|
20~420
|
20~420
|
|

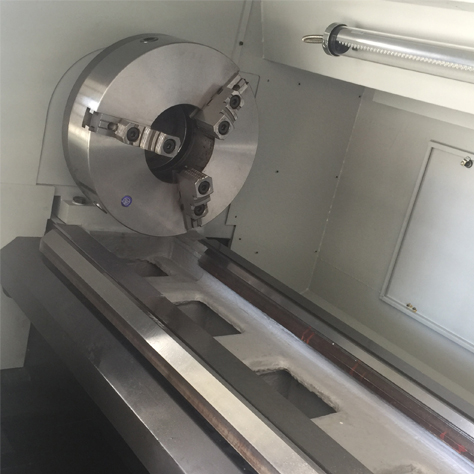

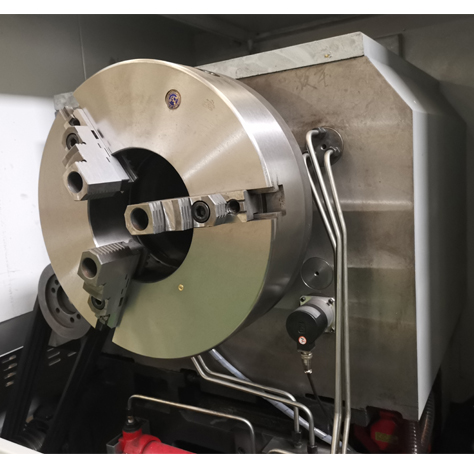

Chuck size
|
mm
|
Manual 3-jaw Φ400
|
Manual 3-jaw Φ500
|
Manual 3-jaw Φ500
|
Manual 4-jaw Φ630
|
Manual 4-jaw Φ800
|
|
Spindle motor
|
kw
|
11
|
15
|
|
Feeding axes
|
X axes travel
|
mm
|
320/420
|
420
|
|
Z axes travel
|
mm
|
850/1350/2850
|
|
X/Z axes rapid rate
|
m/min
|
4/6
|
|

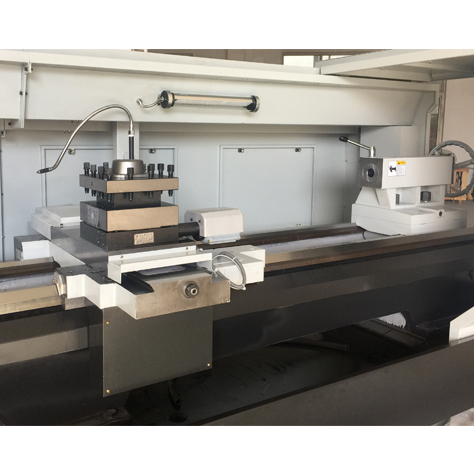

Tool post
|
Tool post type
|
mm
|
4 station electric tool post
|
|
Toolshank size
|
mm
|
32×32
|
|

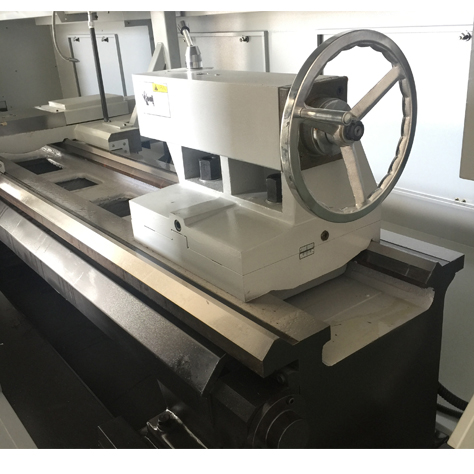

Tailstock
|
Tailstock quill travel
|
mm
|
250
|
|
Tailstock quill dia.
|
mm
|
Φ100
|
Φ120
|
|
Tailstock quill taper
|
/
|
MT5#
|
MT6#
|
|
Others
|
Overall size
|
mm
|
3300/3800/5300×1880×1850
|
3600/4100/5600×1930×1900
|
|
N.W.
|
T
|
4.5/5/6
|
4.6/5.1/6.1
|
4.7/5.2/6.2
|
6/6.5/7.5
|
6.2/6.7/7.7
|
Standard configuration:
●GSK980TC3 CNC controller
●Double Manual chuck
●4 station tool post
●Manual tailstock
Optional configuration:
●SIEMENS 808D ADVANCED/FANUC 0I TF controller
●6/8 station tool turret
