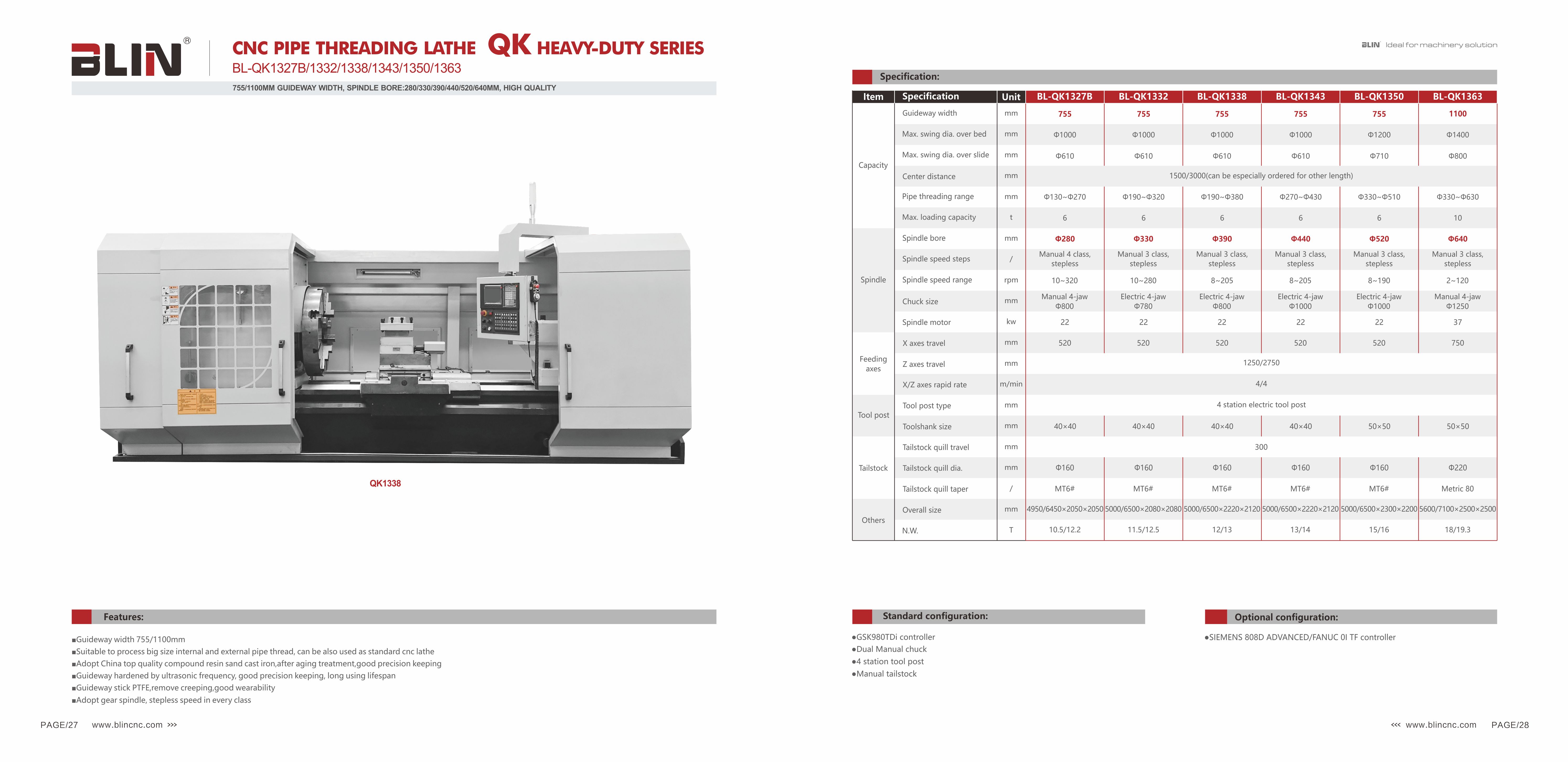

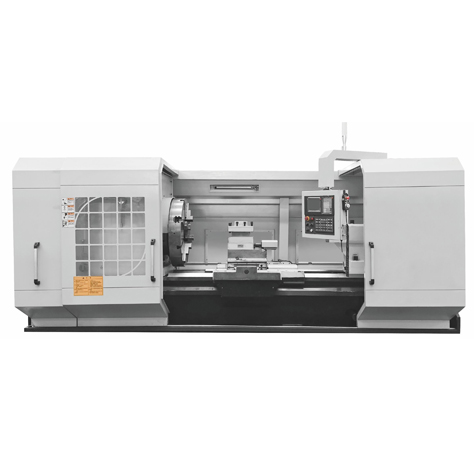

■Guideway width 755/1100mm
■Suitable to process big size internal and external pipe thread, can be also used as standard cnc lathe
■Adopt China top quality compound resin sand cast iron,after aging treatment,good precision keeping
■Guideway hardened by ultrasonic frequency, good precision keeping, long using lifespan
■Guideway stick PTFE,remove creeping,good wearability
■Adopt gear spindle, stepless speed in every class
|
Item
|
Specification
|
Unit
|
BL-QK1327B
|
BL-QK1332
|
BL-QK1338
|
BL-QK1343
|
BL-QK1350
|
BL-QK1363
|
|
Capacity
|
Guideway width
|
mm
|
755
|
755
|
755
|
755
|
755
|
1100
|
|
Max. swing dia. over bed
|
mm
|
Φ1000
|
Φ1000
|
Φ1000
|
Φ1000
|
Φ1200
|
Φ1400
|
|
Max. swing dia. over slide
|
mm
|
Φ610
|
Φ610
|
Φ610
|
Φ610
|
Φ710
|
Φ800
|
|
Center distance
|
mm
|
1500/3000(can be especially ordered for other length)
|
|
Pipe threading range
|
mm
|
Φ130~Φ270
|
Φ190~Φ320
|
Φ190~Φ380
|
Φ270~Φ430
|
Φ330~Φ510
|
Φ330~Φ630
|
|
Max. loading capacity
|
t
|
6
|
6
|
6
|
6
|
6
|
10
|
|
Spindle
|
Spindle bore
|
mm
|
Φ280
|
Φ330
|
Φ390
|
Φ440
|
Φ520
|
Φ640
|
|
Spindle speed steps
|
/
|
Manual 4 class, stepless
|
Manual 3 class, stepless
|
Manual 3 class, stepless
|
Manual 3 class, stepless
|
Manual 3 class, stepless
|
Manual 3 class, stepless
|
|
Spindle speed range
|
rpm
|
10~320
|
10~280
|
8~205
|
8~205
|
8~190
|
2~120
|
|
Chuck size
|
mm
|
Manual 4-jaw Φ800
|
Electric 4-jaw Φ780
|
Electric 4-jaw Φ800
|
Electric 4-jaw Φ1000
|
Electric 4-jaw Φ1000
|
Manual 4-jaw Φ1250
|
|
Spindle motor
|
kw
|
22
|
22
|
22
|
22
|
22
|
37
|
|
Feeding axes
|
X axes travel
|
mm
|
520
|
520
|
520
|
520
|
520
|
750
|
|
Z axes travel
|
mm
|
1250/2750
|
|
X/Z axes rapid feed rate
|
m/min
|
4/4
|
|
Tool post
|
Tool post type
|
mm
|
4 station electric tool post
|
|
Toolshank size
|
mm
|
40×40
|
40×40
|
40×40
|
40×40
|
50×50
|
50×50
|
|
Tailstock
|
Tailstock quill travel
|
mm
|
300
|
|
Tailstock quill dia.
|
mm
|
Φ160
|
Φ160
|
Φ160
|
Φ160
|
Φ160
|
Φ220
|
|
Tailstock quill taper
|
/
|
MT6#
|
MT6#
|
MT6#
|
MT6#
|
MT6#
|
Metric 80
|
|
Others
|
Overall size
|
mm
|
4950/6450×2050×2050
|
5000/6500×2080×2080
|
5000/6500×2220×2120
|
5000/6500×2220×2120
|
5000/6500×2300×2200
|
5600/7100×2500×2500
|
|
N.W.
|
T
|
10.5/12.2
|
11.5/12.5
|
12/13
|
13/14
|
15/16
|
18/19.3
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Standard configuration:
●GSK980TDi controller
●Dual Manual chuck
●4 station tool post
●Manual tailstock
Optional configuration:
●SIEMENS 808D ADVANCED/FANUC 0I TF controller
