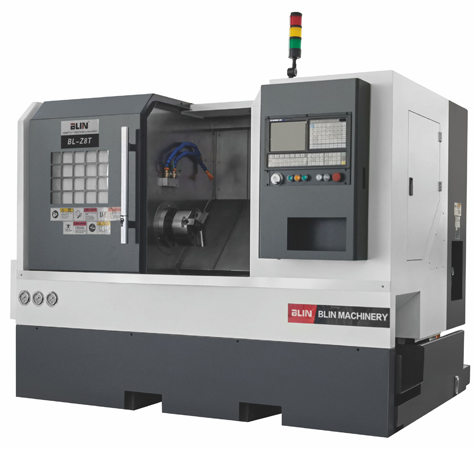

■Super high performance-price ratio
■Mono-block 45° slant bed
■For Z8T, X,Z axes adopt ROLLER type linear guideway
|
Item
|
Specification
|
Unit
|
BL-Z6T
|
BL-Z8T
|
|
Capacity
|
Chuck size
|
/
|
6’’/8’’*
|
6’’/8’’*
|
8’’/10’’*
|
|
Max. swing dia. over bed
|
mm
|
Φ360
|
Φ500
|
|
Max. machining dia.(disc type)
|
mm
|
Φ250
|
Φ400
|
|
Max. machining dia.(shaft type)
|
mm
|
Φ180
|
Φ250
|
|
Center distance
|
mm
|
350
|
500
|
|
Max. turning length
|
mm
|
300
|
390
|
380
|
|
Max. bar through dia.
|
mm
|
Φ45
|
Φ45
|
Φ51
|
|
Spindle
|
Spindle speed
|
rpm
|
4000
|
4000
|
4000
|
|
Spindle bore
|
mm
|
Φ56
|
Φ56
|
Φ62
|
|
Spindle nose
|
/
|
A2-5
|
A2-5
|
A2-6
|
|
Spindle motor
|
kw
|
5.5(Servo)
|
7.5(Servo)
|
11(Servo)
|
|
Tool turret
|
Tool turret type
|
/
|
8 station Hydraulic tool turret
|
10 station Hydraulic tool turret
|
|
Toolshank size
|
mm
|
25×25,Φ32
|
25×25,Φ32
|
|
X/Z axes
|
X axes travel
|
mm
|
200
|
220
|
|
Z axes travel
|
mm
|
330
|
480
|
|
X/Z axes servo motor
|
Nm
|
10/10(GSK)
|
15/15(GSK)
|
|
X/Z axes Linear guideway width
|
mm
|
25/30
|
30/35(Roller type)
|
|
X,Z axes ball srew O.D./pitch
|
mm
|
Φ32/10
|
Φ32/10
|
|
X/Z axes rapid moving speed
|
m/min
|
20
|
|
X/Z axes positioning precision
|
mm
|
+/-0.006
|
|
X/Z axes repeatable positioning precision
|
mm
|
+/-0.005
|
|
Tailstock
|
Tailstock
quill travel
|
/
|
80
|
80
|
|
Tailstock
quill taper
|
MT4#
|
MT5#
|
|
Others
|
Overall size
|
mm
|
2210×1660×1620
|
2430×1830×1680
|
|
N.W.
|
kg
|
2500
|
2800
|
3000
|
|
Item
|
Brand
|
|
CNC controller
|
CHINA-GSK
|
|
Servo motor&driver
|
CHINA-GSK
|
|
Spindle Unit
|
CHINA Top
|
|
Spindle bearing
|
CHINA Top-HRB
|
|
Ball screw bearing
|
JAPAN-THT
|
|
Linear guideway
|
Joint venture-HTPM
|
|
Ball screw
|
JAPAN-LAIEN
|
|
Tool turret
|
TAIWAN
|
|

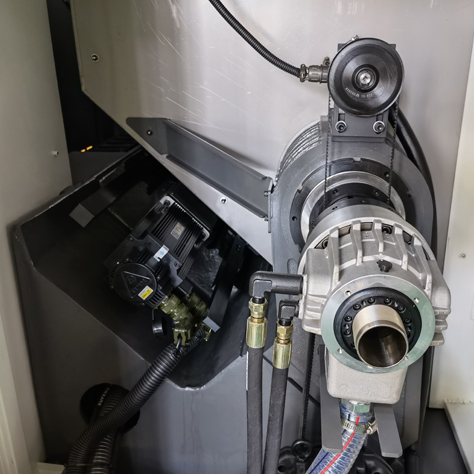

Chuck&oil cylinder
|
TAIWAN(Opt.:CHINAbrand)
|
Standard configuration:

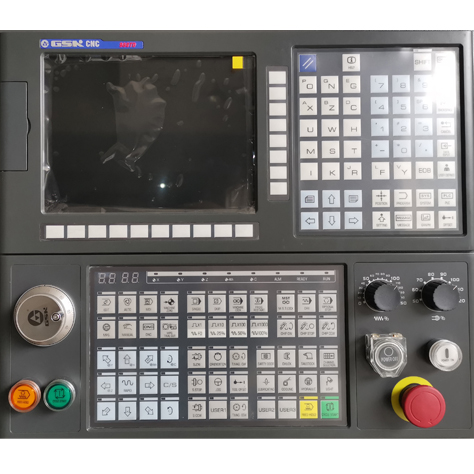

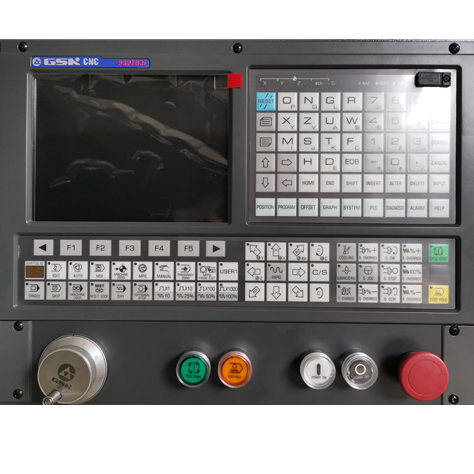

●GSK CNC controller

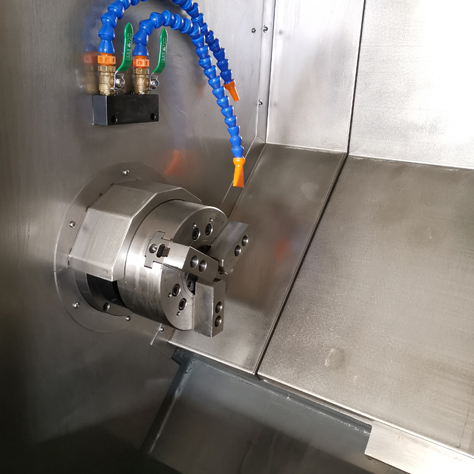

●Hydraulic chuck
●8/10 station hydraulic tool turret
●Hydraulic tailstock
Optional configuration:
●Chip conveyor
