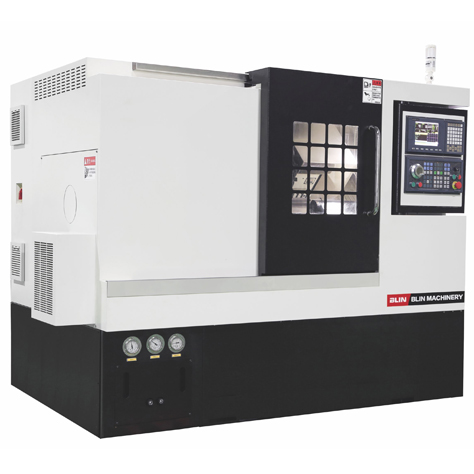

■ Adopt TAIWAN technology, designed by TAIWAN engineer, most parts adopt GERMANY/JAPAN/TAIWAN brand

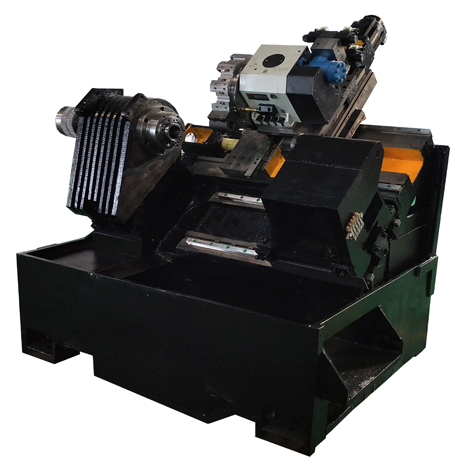

■ Adopt 45°integral slant bed design
■ Adopt ROLLER type linear guideway,super high rigidity
■ Adopt MEEHANITE class cast iron, after aging treatment, small distortion, good torsional strength, good heat stability
■ Base adopt multilayer strengthening rib, ensure bed’s strength and stability
■ Adopt high precision integral spindle unit, spindle motor adopt high performance servo motor, big output torque,high speed,wide adjustment range
■ Adopt high precision pre-stretched ball screw(double nuts), coupled with feeding motor directly by linkager, no gap,high transmission rigidity
■ Adopt especial structure programmable tailstock, tailstock quill not move, whole tailstock body driven by hydraulic cylinder on linear guideway

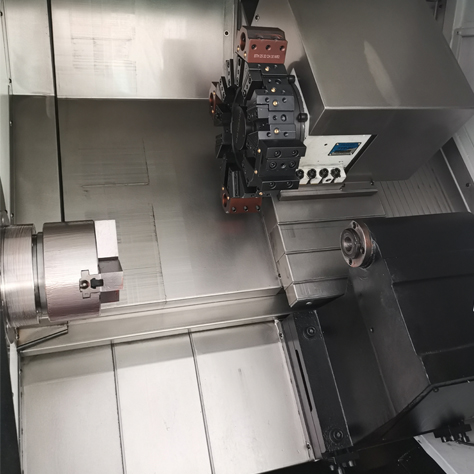

■ Mount 10T hydraulic-servo tool turret
|
Item
|
Specification
|
Unit
|
BL-H40L
|
|
Capacity
|
Chuck size
|
/
|
6’’/8’’
|
|
Max. swing dia. over bed
|
mm
|
Φ410
|
|
Max. swing dia. over saddle
|
mm
|
Φ230
|
|
Max. turning length
|
mm
|
400
|
|
Max. turning dia.
|
mm
|
Φ300
|
|
Spindle
|
Spindle bore
|
mm
|
Φ56
|
|
Spindle end type
|
/
|
A2-5
|
|
Spindle speed
|
rpm
|
4000
|
|
Max. bar through dia.
|
mm
|
44
|
|
Spindle motor power
|
kw
|
7.5
|
|
X/Z axes
|
X/Z axes linear guideway type
|
/
|
ROLLER type
|
|
X axes travel
|
mm
|
180
|
|
Z axes travel
|
mm
|
400
|
|
X/Z axes rapid moving speed
|
m/min
|
30
|
|
Tool turret
|
Tool turret type
|
/
|
10T Hydraulic-servo
|
|
Toolshank size
|
mm
|
25×25, Φ32
|
|
Tailstock
|
Tailstock quill taper
|
/
|
MT4#
|
|
Tailstock body max. travel
|
mm
|
350
|
|
Accuracy
|
Positioning accuracy(X/Z)
|
mm
|
±0.005
|
|
Repeat positioning accuracy(X/Y/Z)
|
mm
|
±0.003
|
|
Others
|
Overall size
|
mm
|
2300×1500×1700
|
|
N.W.
|
kg
|
2800
|
|
Item
|
Brand
|
|
Spindle unit
|
TAIWAN-KENTURN
|
|
Tool turret
|
TAIWAN-MYKUN
|
|
Ball screw
|
TAIWAN-HIWIN/PMI
|
|
Ball screw bearing
|
GERMANY-FAG
|
|
Linear guideway
|
TAIWAN HIWIN/PMI
|
|
Lubrication system
|
JAPAN-HERG
|
|

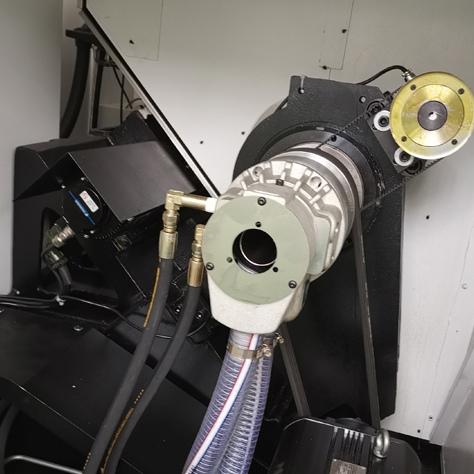

Rotary oil cylinder&chuck
|
TAIWAN-AUTOGRIP
|
|

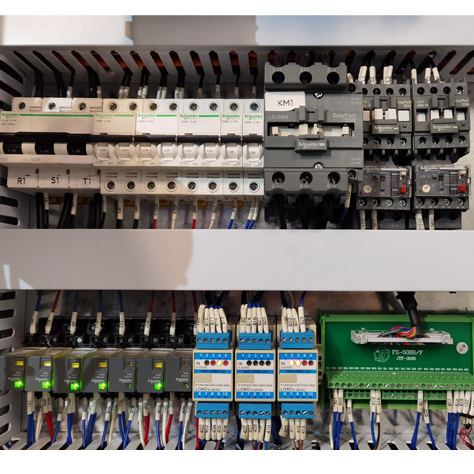

Main electricity parts
|
FRANCE-SCHNEIDER
|
Standard configuration:

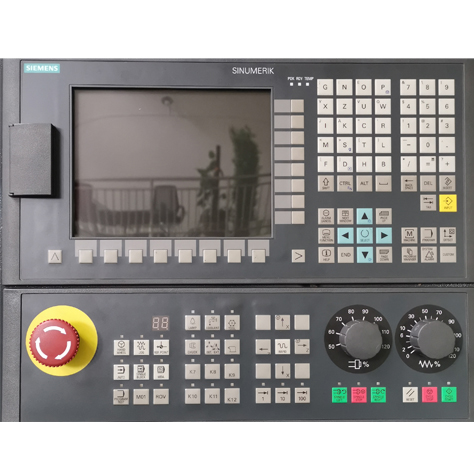

●SIEMENS 808D ADVANCED CNC controller
●Hydraulic chuck
●Hydraulic-servo tool turret
●Hydraulic tailstock
Optional configuration:
●SYNTEC/SIEMENS 828D/FANUC CNC controller
●Automatic chip conveyor
