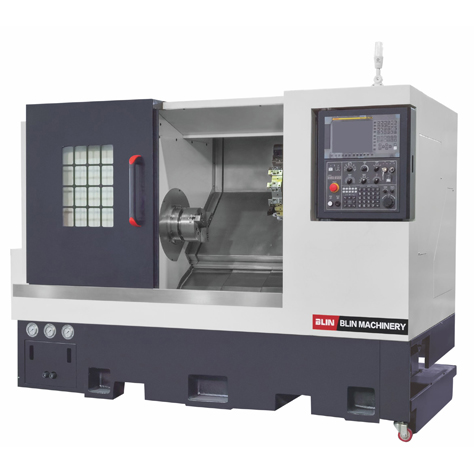

BL-H50Q
■ H STANDARD Series
■ TAIWAN technology
■ 8''/10'' chuck
■ 10T tool turret
■ Hydraulic tailstock
  • FEATURES
  • SPECIFICATION
  • MAIN PARTS LIST
  • CONFIGURATION
■ Adopt TAIWAN technology, designed by TAIWAN engineer, most parts adopt GERMANY/JAPAN/TAIWAN brand

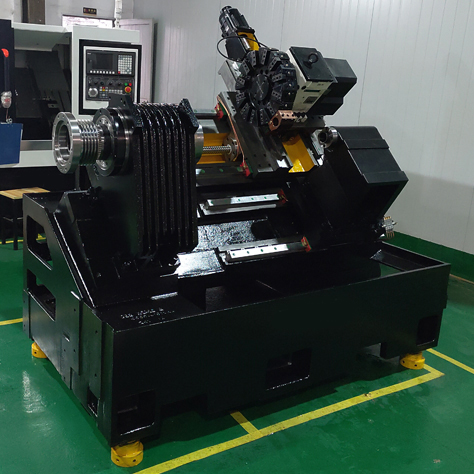

■ Adopt 45°integral slant bed design
■ Adopt ROLLER type linear guideway,super high rigidity
■ Adopt MEEHANITE class cast iron, after aging treatment, small distortion, good torsional strength, good heat stability
■ Base adopt multilayer strengthening rib, ensure bed’s strength and stability

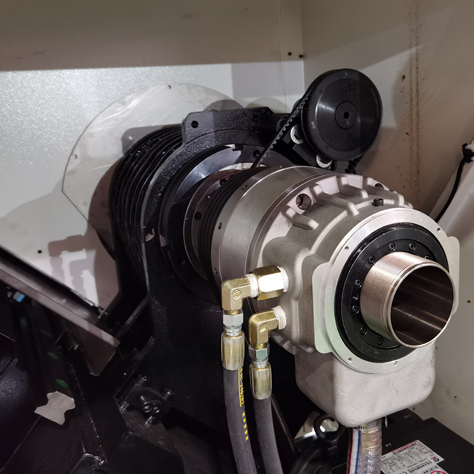

■ Adopt high precision integral spindle unit, spindle motor adopt high performance servo motor, big output torque,high speed,wide adjustment range

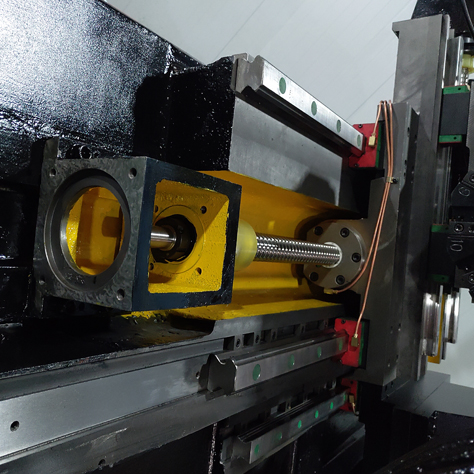

■ Adopt high precision pre-stretched ball screw(double nuts), coupled with feeding motor directly by linkager, no gap,high transmission rigidity
■ Adopt especial structure programmable tailstock, tailstock quill not move, whole tailstock body driven by hydraulic cylinder on linear guideway

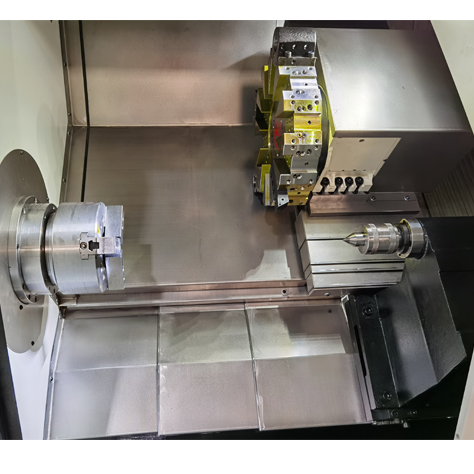

■ Mount 10T hydraulic-servo tool turret

Item

Specification

Unit

BL-H50Q

Capacity

Chuck size

/

8’’/10’’

Max. swing dia. over bed

mm

Φ500

Max. swing dia. over saddle

mm

Φ250

Max. turning length

mm

500

Max. turning dia.

mm

Φ400

Spindle

Spindle bore

mm

Φ62

Spindle end type

/

A2-6

Spindle speed

rpm

3500

Max. bar through dia.

mm

51

Spindle motor power

kw

11

X/Z axes

X/Z axes linear guideway type

/

ROLLER type

X axes travel

mm

210

Z axes travel

mm

500

X/Z axes rapid moving speed

m/min

30

Tool turret

Tool turret type

/

10T Hydraulic-servo

Toolshank size

mm

25×25, Φ32

Tailstock

Tailstock quill taper

/

MT5#

Tailstock body max. travel

mm

450

Accuracy

Positioning accuracy(X/Z)

mm

±0.005

 Repeat positioning accuracy(X/Y/Z)

mm

±0.003

  Others

Overall size

mm

2500×1500×1700

N.W.

kg

3800

Item

Brand

Spindle unit

TAIWAN-KENTURN

Tool turret

TAIWAN-MYKUN

Ball screw

TAIWAN-HIWIN/PMI

 Ball screw bearing

GERMANY-FAG

Linear guideway

TAIWAN HIWIN/PMI

Lubrication system

JAPAN-HERG

Rotary oil cylinder&chuck

TAIWAN-AUTOGRIP

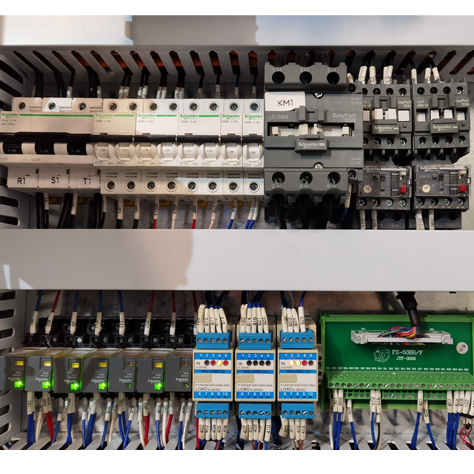

Main electricity parts

FRANCE-SCHNEIDER

Standard configuration:
●SIEMENS 808D ADVANCED CNC controller
●Hydraulic chuck
●Hydraulic-servo tool turret
●Hydraulic tailstock

Optional configuration:
●SYNTEC/SIEMENS 828D/FANUC CNC controller
●Automatic chip conveyor
