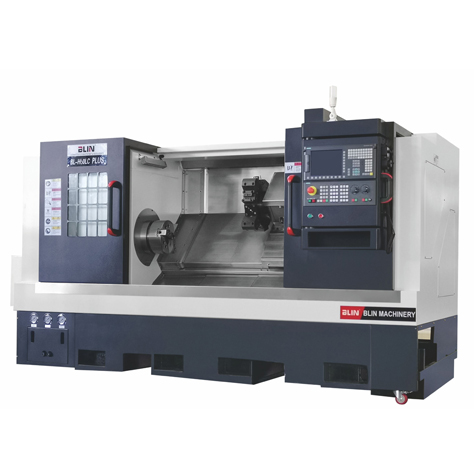

■ Adopt ROLLER type linear guideway
■ Adopt TAIWAN technology, most parts adopt GERMANY/JAPAN/TAIWAN brand
■ Adopt 45°integral slant bed design
■ Adopt china top class HT300 cast iron, after aging treatment, small distortion, good torsional strength, good heat stability
■Adopt high precision spindle unit, spindle motor adopt high performance servo motor, big output torque,high speed
■Adopt high precision pre-stretched ball screw(double nuts), coupled with feeding motor directly by linkager,
no gap,high transmission rigidity

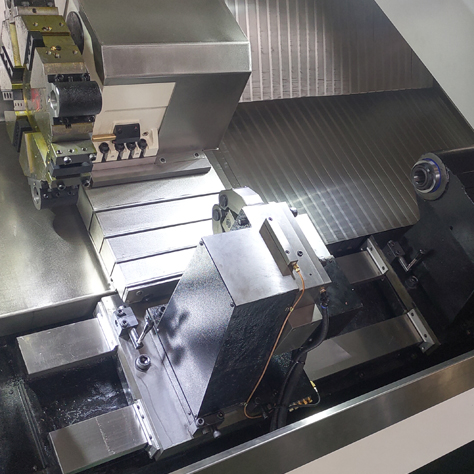

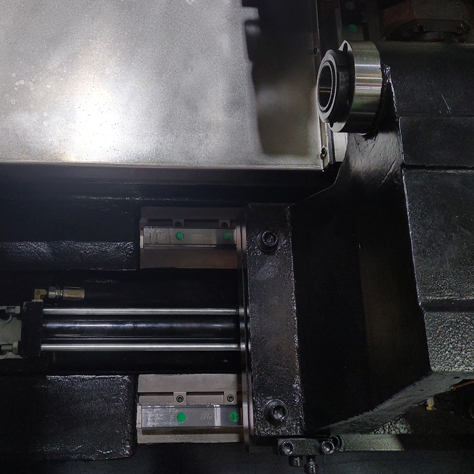

■ Adopt especial structure programmable tailstock, tailstock quill not move, whole tailstock body driven by hydraulic cylinder
On linear guideway(* If mount hydraulic steady rest, the guideway of tailstock to be BOX guideway)

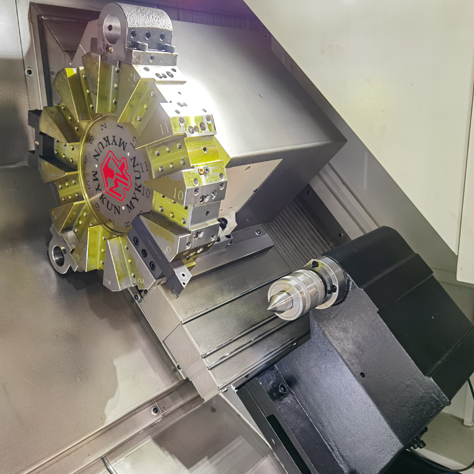

■ H60L mount 10T TAIWAN Hydraulic tool turret

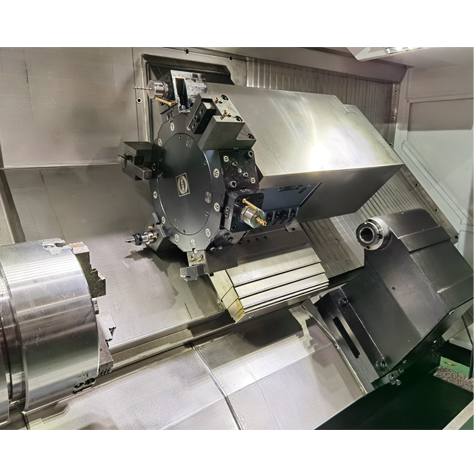

■ H60LC mount C axes and 12T GERMAN SAUTER Powered tool turret
|
Item
|
Specification
|
Unit
|
BL-H60L
|
BL-H60LC
|
|
Capacity
|
Max. swing dia. over bed
|
mm
|
Φ600
|
|
Max. swing dia. over slide
|
mm
|
Φ400
|
|
Max. turning dia.
|
mm
|
Φ600
|
Φ450
|
|
Max. turning length
|
mm
|
1000/1500/2000/3000
|
|
Spindle
|
Spindle bore
|
mm
|
Φ87(Φ105*)
|
|
Spindle type
|
/
|
A2-8(A2-11*)
|
|
Spindle speed
|
rpm
|
2500(2000*)
|
|
Chuck size
|
/
|
10’’(12’’*)
|
|
Max. bar through dia.
|
mm
|
Φ74(90*)
|
|
Spindle motor power
|
kw
|
18.5/22
|
15(SIEMENS)
|
|
Spindle dividing accuracy
|
°
|
/
|
0.001°
|
|
X/Z axes
|
X axes travel
|
mm
|
320
|
250
|
|
Z axes travel
|
mm
|
1000/1500/2000/3000
|
|
X axes ball screw dia./pitch
|
mm
|
Φ32/10
|
|
Z axes ball screw dia./pitch
|
mm
|
Φ40/12
|
|
X/Z axes linear guideway width
|
mm
|
45/55(ROLL type)
|
|
X/Z axes rapid moving speed
|
m/min
|
20/20
|
|
Tool turret
|
Tool post type
|
/
|
10 station hydraulic tool turret
|
12 station servo powered tool turret BMT65
|
|
Toolshank size
|
mm
|
32×32, Φ40
|
25×25, Φ40
|
|
Tailstock
|
Tailstock quill travel
|
mm
|
/
|
|
Taisltock quill dia.
|
mm
|
/
|
|
Tailstock quill taper
|
/
|
MT6#
|
MT6#
|
|
Tailstock body travel
|
mm
|
800/1300/1800/2800
|
850/1350/1850/2850
|
|
Others
|
X/Z axes positioning accuracy
|
mm
|
±0.005
|
|
X/Z axes repeated positioning accuracy
|
mm
|
±0.003
|
|
Overall size
|
mm
|
3600/4100/4600/5600×2200×2360
|
|
N.W.
|
kg
|
7000(for 1000mm)
|
7100(for 1000mm)
|
|
Item
|
H60L
|
H60LC
|
|
CNC controller
|
GERMANY-SIEMENS
|
GERMANY-SIEMENS
|
|
X,Z axes servo motor&driver
|
GERMANY-SIEMENS
|
GERMAN-SIEMENS
|
|
Spindle servo motor&driver
|
CHINA Top
|
GERMAN-SIEMENS
|
|
Spindle
|
TAIWAN-KENTURN
|
|
Spindle encoder
|
CHINA brand
|
GERMANY-HEIDENHAIN
|
|
Bearing
|
JAPAN NSK/GERMANY FAG
|
|
Ball screw
|
TAIWAN HIWIN/PMI C3 class
|
|
Linear gudieway
|
TAIWAN HIWIN/PMI P class
|
|
Tool turret
|
TAIWAN-GSA/MYKUN
|
GERMANY-SAUTER
|
|
Chuck&cylinder
|
TAIWAN-AUTOGRIP
|
|
Hydraulic parts
|
TAIWAN/JAPAN
|
|
Lubrication pump
|
JAPAN-HERG
|
|
Nuts
|
TAIWAN-YINSH
|
|

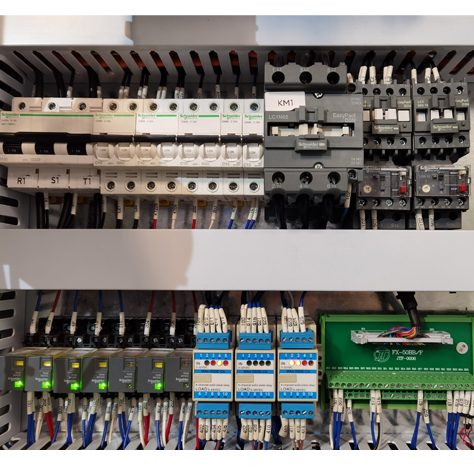

Main electric parts
|
FRANCE-SCHNEIDER
|
Standard configuration:
●SIEMENS 808D ADVANCED CNC controller
●Hydraulic chuck
●Hydraulic-servo tool turret
●Hydraulic tailstock
Optional configuration:
●SYNTEC/SIEMENS 828D/FANUC CNC controller
●C axes& powered tool turret
●Y axes
●Automatic chip conveyor
●Tool setting probe
