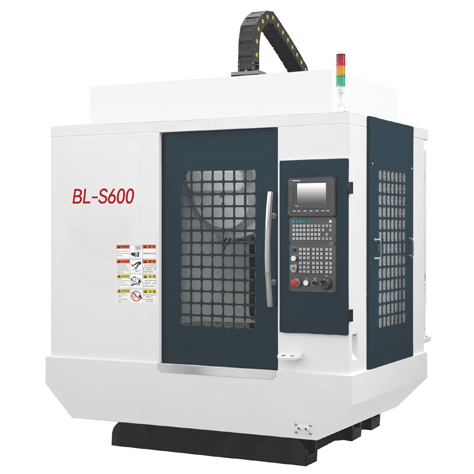

BL-S600/800
■ 16T/21T SLANT DISC TOOL MAGAZINE
■ HIGH SPEED
■ HIGH EFFICIENCY
  • FEATURES
  • SPECIFICATION
  • MAIN PARTS LIST
  • CONFIGURATION

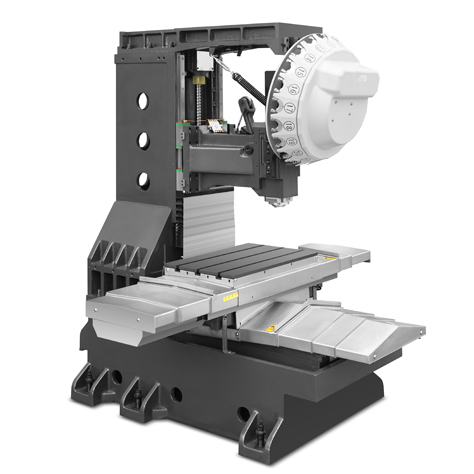

■Adopt HT300 class cast iron
■3 axes adopt wide linear guideway, high rigidity
■3 axes adopt big pre-stretched ball screw

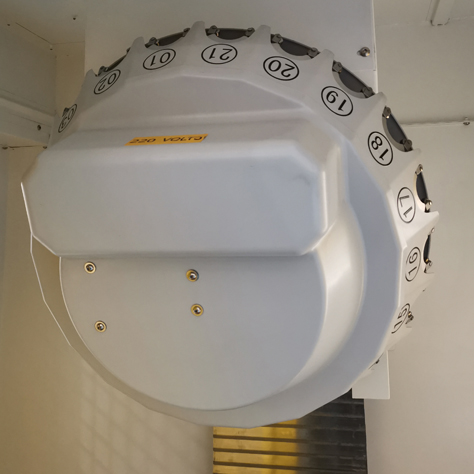

■Adopt Slant Disc type 21T/16T tool magazine,fast tool changing

Item

Specification

Unit

    BL-S600

     BL-S800

Capacity

Max. drilling dia.(U driller)

mm

Φ18

Φ20

Max. tapping dia.

mm

M16

M18

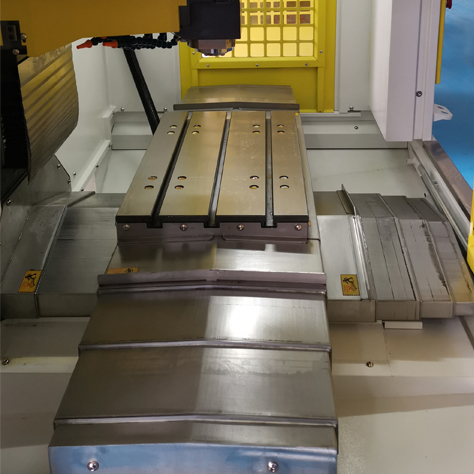

Worktable

Table size(L×W)

mm

700×420

900×500

T slot(NO./width/distance)

mm

3/14/125

5/18/90

Table max. loading

kg

300

500

Spindle

Spindle motor power

kw

5.5/7.5

Spindle type

/

BT30

Spindle max. speed

rpm

Direct-drive 12000(opt.:20000)

Distance from spindle nose to table face

mm

135~485

120~570

Feeding axes

X/Y/Z axes travel

mm

600/400/350

800/520/450

Cutting feed speed

mm/min

5~15000

X/Y/Z axes rapid moving speed

m/min

48/48/48

48/48/36

Positioning precision

mm

±0.003/300

Repeatable positioning precision

mm

0.003

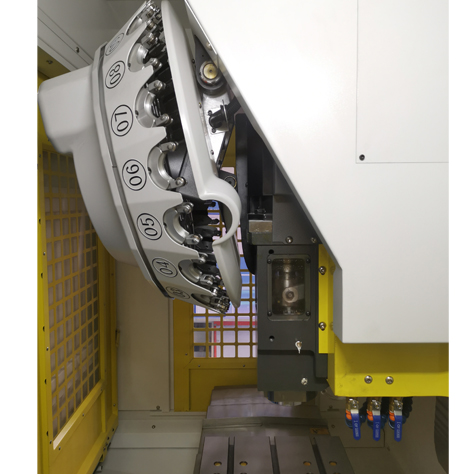

Tool magazine

Tool magazine type

/

Slant disc type

Tools qty

/

21

16

Tool changing time(tool to tool)

s

1.6

1.8

Max. tool dia.(full/(no adjacent tool)

mm

Φ50/Φ120

Φ60/Φ120

Others

Overall dimension(L×W×H)

mm

1900×2100×2200

2400×1700×2100

Weight

kg

3000

4500

Item

Brand

Ball screw

TAIWAN-HIWIN/PMI

Linear guideway

TAIWAN-HIWIN/PMI

Ball screw bearing

SWEDEN SKF/GERMAN FAG

Spindle

TAIWAN

Tool magazine

TAIWAN-SANJET

Main electric parts

FRANCE-SCHNEIDER

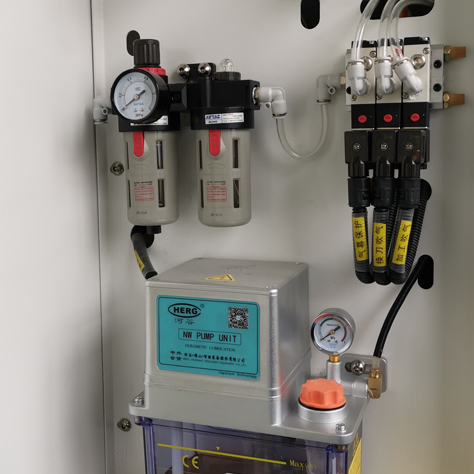

Pneumatic parts

TAIWAN-AIRTAC

Lubrication pump

                      JAPAN-HERG

Standard configuration:

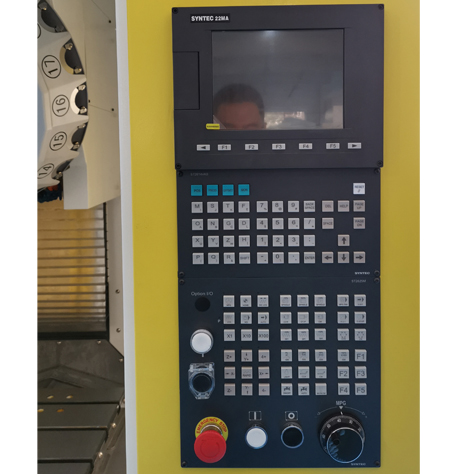

●SYNTEC 22MA CNC controller

Optional configuration:
●FANUC 0I MF CNC controller
●4th axes
